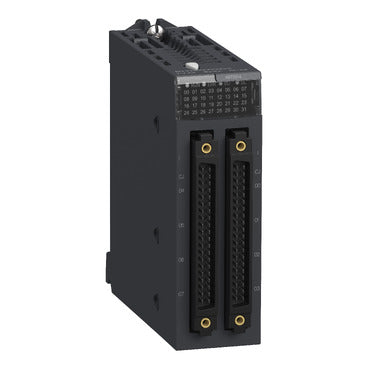

Schneider Electric BMXART0814

Description:

The Schneider Electric BMXART0814 Analog Input Module is used in Modicon X80 PLC systems to acquire and process low-level analog signals such as temperature inputs. Commonly installed in industrial automation systems, process control equipment, and manufacturing lines where precise signal measurement is required. Maintenance teams and system integrators use this module for system expansion, replacement, and upgrades to ensure accurate data acquisition and control performance.

Applications:

The Schneider Electric BMXART0814 module is widely used in industrial automation environments to capture temperature and low-level analog signals from field devices. It is deployed in manufacturing plants, energy systems, chemical processing, and material handling applications where RTDs and thermocouples are used for monitoring and control. With isolated channels and high-resolution conversion, this module ensures reliable signal integrity and accurate measurement in demanding industrial environments.

Technical Specifications:

• Manufacturer: Schneider Electric
• Model / Part Number: BMXART0814
• Product Type: Analog Input Module
• Platform Compatibility: Modicon X80 (M340 / M580 PLCs)
• Number of Inputs: 8 analog channels
• Signal Type: RTD and thermocouple inputs
• Input Range: Low-level signals (±40 mV and temperature inputs)
• Resolution: 15-bit + sign
• A/D Conversion: 16-bit sigma-delta
• Input Impedance: 10 MΩ
• Isolation: Channel-to-channel isolation
• Filtering: First-order digital filtering
• Current Consumption: ~150 mA at 3.3 VDC
• Connectors: 40-pin connectors (2x)
• Protection Rating: IP20
• Application: Temperature and analog signal acquisition

Common Replacements:

• Schneider Electric BMXAMI0810
• Schneider Electric BMXART0414
• Schneider Electric BMEAHI0812
