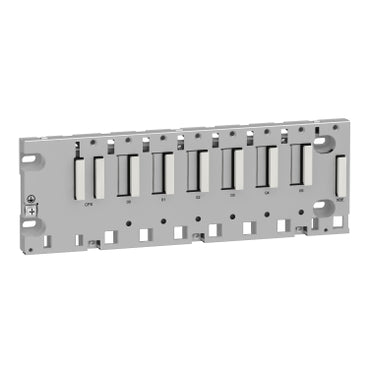

Schneider Electric BMXXBP0600 6-Slot Rack Backplane BMXXBP0600

Description:

The Schneider Electric BMXXBP0600 6-Slot Rack Backplane is used in industrial automation systems to provide the physical and electrical backbone for Modicon M340 and Modicon X80 PLC components. This backplane allows power supplies, processors, communication modules, and I/O modules to be installed and interconnected within a PLC rack. It distributes power and communication across the X-Bus architecture so the installed modules can exchange data and operate as a unified automation system. Maintenance teams and system integrators frequently use this rack for building new PLC control systems, expanding existing automation installations, and replacing damaged or aging PLC racks in industrial control panels.

Applications:

The Schneider Electric BMXXBP0600 rack backplane is commonly used in industrial environments including manufacturing production lines, process control plants, water and wastewater treatment facilities, energy systems, and large automation installations where Modicon M340 or X80 PLC platforms are used to manage distributed control systems.

Technical Specifications:

• Manufacturer: Schneider Electric
• Model: BMXXBP0600
• Product Type: PLC Rack Backplane
• Platform Compatibility: Modicon M340 / Modicon X80 automation platform
• Number of Slots: 6 X-Bus slots
• Module Compatibility: Power supply, CPU processor, I/O modules, and communication modules
• Backplane Bus: X-Bus system architecture
• Electrical Connection: 1 XBE expansion connector for rack extension
• Power Consumption: Approx. 1.5 W
• Mounting Type: DIN rail, panel mount, or mounting plate
• Protection Rating: IP20
• Operating Temperature Range: 0°C to 60°C
• Relative Humidity: 10–95% non-condensing
• Dimensions: Approx. 307.6 × 103.7 × 19 mm
• Weight: Approx. 0.79 kg
• Function: Provides power and communication distribution for PLC modules within the rack

Common Replacements:

• Schneider Electric BMXXBP0400
• Schneider Electric BMXXBP0800
• Schneider Electric BMXXBP1200
