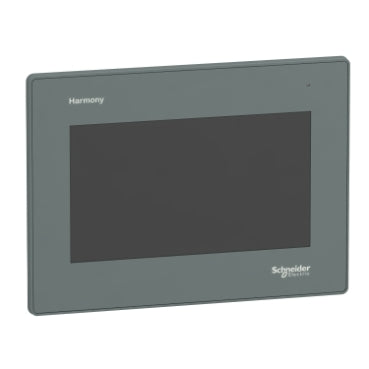

Schneider Electric HMIGXU3500 Touch Panel Screen 7" HMIGXU3500

Description:

The Schneider Electric HMIGXU3500 touch panel is used in industrial automation systems to provide a human-machine interface for monitoring and controlling PLC-based equipment and processes. This 7-inch touchscreen HMI allows operators to visualize machine status, input commands, and manage alarms through an intuitive graphical interface connected to industrial controllers. It is commonly installed in machine control panels, manufacturing equipment, and process automation systems where reliable operator interaction with PLC systems is required. Maintenance technicians and system integrators use this HMI for system operation, machine monitoring, and replacement of existing operator interface terminals in industrial automation environments.

Applications:

The Schneider Electric HMIGXU3500 HMI panel is widely used in industrial environments including factory automation systems, packaging machinery, conveyor systems, HVAC control systems, pump stations, water treatment plants, and industrial machine control panels where operators must interact with PLC systems for monitoring and process control.

Technical Specifications:

• Manufacturer: Schneider Electric
• Model: HMIGXU3500
• Product Type: Human Machine Interface (HMI) Touch Panel
• Series: Harmony Easy GXU
• Display Size: 7 inch widescreen
• Display Type: TFT LCD touchscreen with LED backlight
• Display Resolution: 800 × 480 pixels (WVGA)
• Display Colors: 65,536 colors
• Backlight Life: Approximately 20,000 hours
• Rated Supply Voltage: 24 V DC
• Power Consumption: Approx. 5.4 W
• Communication Ports: 1 serial port (RS-422 / RS-485)
• Additional Ports: USB mini-B for configuration
• Internal Memory: 32 MB application memory
• Panel Protection Rating: IP65 front panel when properly installed
• Operating Temperature Range: 0°C to +50°C
• Mounting Type: Panel mount installation
• Cut-Out Dimensions: Approximately 190 × 135 mm

Common Replacements:

• Schneider Electric HMIGXU3512
• Schneider Electric HMIGXU5500
• Schneider Electric HMIGTO5310
