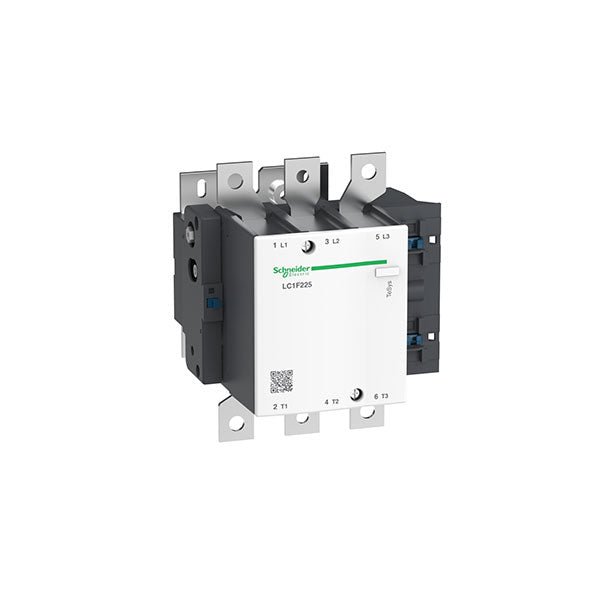

Schneider Electric LC1-F225M7 TeSys LC1 3 Pole 225 A 110 kW Contactor LC1F225M7

Description:

LC1F225M7 DISCONTINUED BY MANUFACTURER: 01/11/2023 CONTACTOR TESYS F RANGE 225-315 AMP 460 VDC/690 VAC 50/60 HZ COIL: 220 VAC 40-400 HZ 3 NO POLE CONTACT 8 KV -5 TO 55 DEGREE C IP20 The Schneider Electric LC1-F225M7 is a high-performance contactor designed for switching and controlling electrical circuits in industrial applications. Part of the TeSys F series, this contactor is engineered to handle high power and ensure reliable operation in demanding environments. With a rated operational current of up to 225A, the LC1-F225M7 is suitable for controlling large motors and other heavy electrical loads. Its robust design and high breaking capacity make it a dependable choice for applications requiring precise and reliable switching performance.

Technical Specifications:

• Type: Contactor
• Model: LC1-F225M7
• Series: TeSys F
• Rated Operational Current: 225A
• Number of Poles: 3 (Three-Phase)
• Rated Voltage:
• AC Voltage: Typically up to 690V AC
• DC Voltage: Check datasheet for specific DC ratings
• Rated Insulation Voltage: 1000V AC
• Rated Thermal Current (Ith): 225A
• Rated Breaking Capacity: High breaking capacity (verify exact value from datasheet)
• Coil Voltage:
• Control Voltage: Available in various control voltages (e.g., 24V DC, 110V AC, 220V AC, etc.)
• Mounting Type: DIN Rail or Panel Mount (verify specific mounting options)
• Degree of Protection: IP20 (standard; specific IP ratings may vary)
• Temperature Range: Typically -5°C to +60°C (verify exact operating range from datasheet)
• Dimensions (HxWxD): Specific dimensions should be confirmed from datasheet for accurate fit

Applications:

• Suitable for motor control and switching applications in industrial settings, including HVAC systems, lighting, and electrical distribution networks.

Benefits:

• The contactor offers high electrical durability and reliable performance, ensuring efficient operation of motors and other heavy loads. Its robust construction minimizes maintenance needs and extends service life, while its compact design facilitates easy installation and integration.
