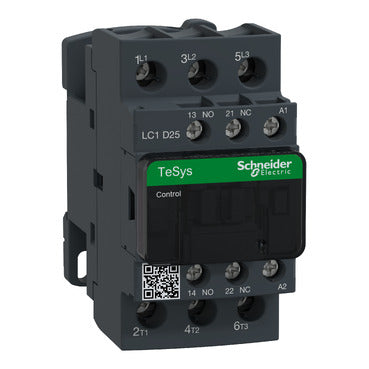

Schneider Electric LC1D25X7 Contactor 600v-ac 40a Amp 15hp LC1D25X7

Description:

The Schneider Electric LC1D25X7 Contactor is used in industrial automation systems to control three-phase motors and other electrical loads. This device is part of the Schneider Electric TeSys D series and is designed for reliable switching of power circuits in motor control applications. It is commonly installed in motor control centers, electrical control panels, and industrial automation cabinets where dependable control of motors and equipment is required. Maintenance teams and system integrators frequently use this contactor for motor starter assemblies, replacement of worn contactors, and upgrades to industrial motor control systems.

Applications:

The Schneider Electric LC1D25X7 contactor is widely used in industrial environments including manufacturing production lines, conveyor systems, pumps, compressors, HVAC equipment, packaging machinery, and material handling systems where reliable switching of motor loads improves operational efficiency and equipment protection.

Technical Specifications:

• Manufacturer: Schneider Electric
• Model: LC1D25X7
• Product Type: TeSys D Power Contactor
• Series: TeSys D
• Poles: 3 Pole (3NO)
• Rated Operational Current: 25 A AC-3
• Maximum Thermal Current: 40 A
• Rated Operational Voltage: Up to 690 V AC
• Control Coil Voltage: 600 V AC
• Motor Power Rating: Up to 15 HP at 480 V
• Frequency: 50/60 Hz
• Auxiliary Contacts: Built-in auxiliary contacts
• Mounting Type: DIN rail or panel mount
• Terminal Type: Screw clamp terminals
• Protection Rating: IP20
• Operating Temperature Range: −5°C to 60°C
• Dimensions: Approx. 85 × 45 × 92 mm

Common Replacements:

• Schneider Electric LC1D18X7
• Schneider Electric LC1D32X7
• ABB AF26-30-00-13
