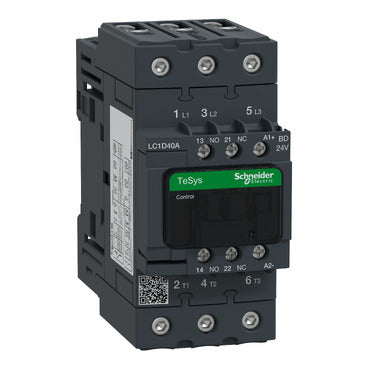

Schneider Electric LC1D40ABD PLC Contactor LC1D40ABD

Description:

The Schneider Electric LC1D40ABD contactor is used in industrial motor control systems to switch and control electrical power to three-phase motors and heavy electrical loads. This TeSys D series contactor provides reliable electromechanical switching for motors, compressors, pumps, and automated machinery operating within control circuits. It is commonly installed in motor control centers, industrial control panels, and electrical distribution cabinets where dependable motor starting and power switching are required. Maintenance technicians and system integrators use this contactor for motor starter assemblies, system upgrades, and replacement of worn or failed contactors in industrial automation systems.

Applications:

The Schneider Electric LC1D40ABD contactor is widely used in industrial and commercial environments including manufacturing machinery, conveyor systems, HVAC equipment, pump and compressor systems, material handling equipment, and motor control centers where reliable switching and control of three-phase motors is required.

Technical Specifications:

• Manufacturer: Schneider Electric
• Model: LC1D40ABD
• Product Type: Magnetic Contactor
• Series: TeSys D
• Number of Poles: 3-Pole (3 NO)
• Rated Operational Current: 40 A AC-3 at ≤ 440 V
• Rated Operational Voltage: Up to 690 V AC
• Motor Power Rating: Up to 30 HP at 460 V three-phase
• Auxiliary Contacts: 1 NO + 1 NC built-in auxiliary contacts
• Coil Type: DC control coil
• Mounting Type: DIN rail or panel mount
• Terminal Type: Screw clamp terminals
• Electrical Durability: Up to approximately 1.5 million cycles
• Mechanical Durability: Up to approximately 10 million cycles
• Operating Temperature Range: −5°C to +60°C
• Standards Compliance: IEC 60947-4-1

Common Replacements:

• Schneider Electric LC1D50ABD
• Schneider Electric LC1D38ABD
• Schneider Electric LC1D65ABD
