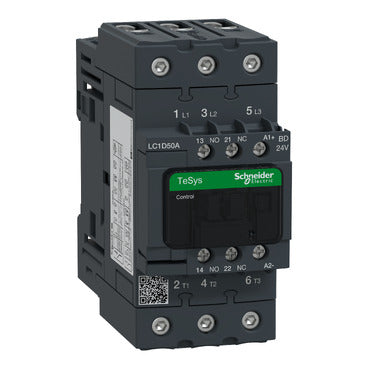

Schneider Electric LC1-D50ABD Contactor LC1D50ABD

Description:

The Schneider Electric LC1D50ABD Contactor is used in industrial automation systems to control three-phase motors and other high-power electrical loads. This contactor is part of the Schneider Electric TeSys D series and is designed for reliable switching of power circuits in motor control applications. It is commonly installed in motor control centers, electrical control panels, and automation cabinets where dependable control of industrial motors and equipment is required. Maintenance teams and system integrators frequently use this contactor for motor starter assemblies, system upgrades, and replacement of worn or failed contactors in industrial machinery.

Applications:

The Schneider Electric LC1D50ABD contactor is widely used in industrial environments including manufacturing production lines, conveyor systems, pumps, compressors, HVAC systems, packaging machinery, and material handling equipment where reliable switching of motor loads improves system reliability and operational efficiency.

Technical Specifications:

• Manufacturer: Schneider Electric
• Model: LC1D50ABD
• Product Type: TeSys D Power Contactor
• Series: TeSys D
• Poles: 3 Pole (3NO)
• Rated Operational Current: 50 A AC-3
• Rated Operational Voltage: Up to 690 V AC
• Motor Power Rating: Up to 22 kW at 400 V
• Control Coil Voltage: 24 V DC
• Auxiliary Contacts: 1 NO + 1 NC integrated
• Utilization Category: AC-3 motor control duty
• Mounting Type: DIN rail or panel mount
• Terminal Type: Screw clamp power and control terminals
• Operating Frequency: Up to 3600 switching cycles per hour
• Operating Temperature Range: Industrial rated conditions
• Function: Switching and controlling three-phase motors and industrial loads

Common Replacements:

• Schneider Electric LC1D40ABD
• Schneider Electric LC1D65ABD
• ABB AF52-30-00-13
