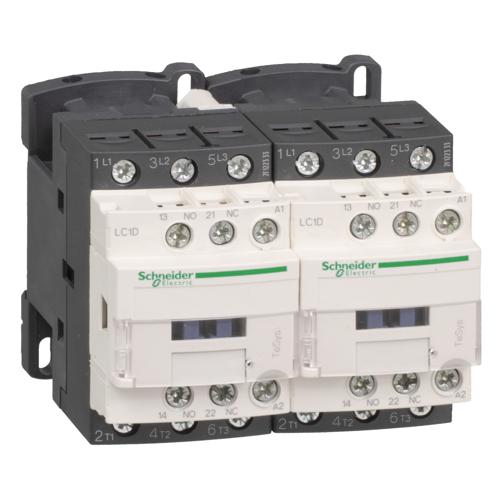

Schneider Electric LC2D25B7 Reversing Contactor 24v-ac 15hp LC2D25B7

Description:

The Schneider Electric LC2D25B7 Reversing Contactor is used in industrial automation systems to control the direction of three-phase motors by reversing the phase sequence of the motor supply. This device is part of the Schneider Electric TeSys D series and consists of two mechanically interlocked contactors configured for forward and reverse motor operation. It is commonly installed in motor control centers, industrial control panels, and automation cabinets where reliable motor direction control is required. Maintenance teams and system integrators frequently use this reversing contactor for conveyor systems, hoists, machine tools, and other equipment requiring bidirectional motor control.

Applications:

The Schneider Electric LC2D25B7 reversing contactor is widely used in industrial environments including manufacturing production lines, conveyor systems, elevators and hoists, pumps, compressors, packaging machinery, and material handling equipment where controlled forward and reverse motor operation improves machine functionality and operational flexibility.

Technical Specifications:

• Manufacturer: Schneider Electric
• Model: LC2D25B7
• Product Type: TeSys D Reversing Contactor
• Series: TeSys Deca
• Poles: 3 Pole (3NO) power contacts
• Rated Operational Current: 25 A AC-3
• Maximum Thermal Current: 40 A AC-1
• Rated Operational Voltage: Up to 690 V AC
• Control Coil Voltage: 24 V AC (50/60 Hz)
• Motor Power Rating: Up to 11 kW at 400 V
• Auxiliary Contacts: 2 NO + 2 NC built-in
• Mechanical Interlock: Integrated reversing interlock system
• Mounting Type: DIN rail or panel mount
• Terminal Type: Screw clamp terminals
• Protection Rating: IP20
• Electrical Durability: Up to 2 million switching cycles
• Function: Forward and reverse motor control for industrial automation systems

Common Replacements:

• Schneider Electric LC2D18B7
• Schneider Electric LC2D32B7
• ABB AF26-30-00-13
