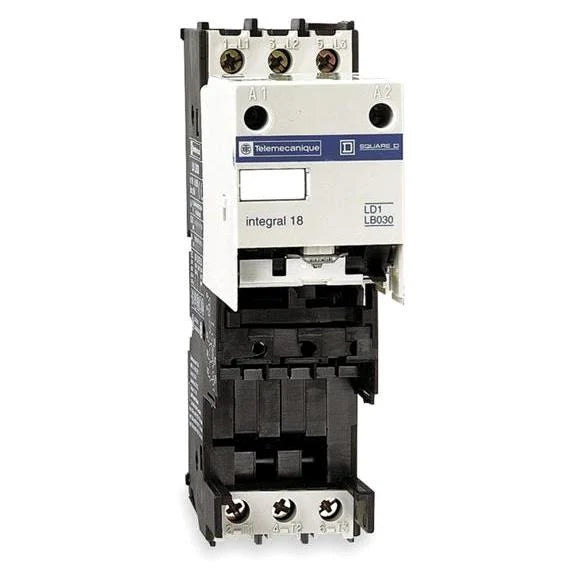

Schneider Electric LD1LB030FC Contactor

Description:

The Schneider Electric LD1LB030FC Contactor Starter is a 3-pole non-reversing motor starter used in industrial motor control systems to provide switching and protection for three-phase motors. Commonly installed in pumps, conveyors, compressors, and industrial machinery where integrated motor control and isolation are required. Maintenance teams and system integrators use this unit for replacement, retrofit, and installation to ensure reliable motor operation and protection.

Applications:

The Schneider Electric LD1LB030FC is widely used in industrial automation environments to control and protect motors in demanding applications. It is deployed in manufacturing plants, HVAC systems, water treatment facilities, and material handling systems to manage motor startup, stopping, and isolation. With integral motor control design, it simplifies installation and improves reliability in applications requiring compact and dependable motor starters.

Technical Specifications:

• Manufacturer: Schneider Electric (Telemecanique / Square D)
• Model / Part Number: LD1LB030FC
• Product Type: Non-Reversing Motor Starter / Contactor Breaker
• Poles: 3-pole (3-phase)
• Rated Current: 18 A
• Rated Voltage: Up to 600 VAC
• Coil Voltage: 120 VAC, 60 Hz
• Motor Power Rating: Up to 15 HP @ 575V
• Type: Non-reversing, open style
• Configuration: Integral motor starter with isolator
• NEMA Size: 00
• Protection: Requires external overload module (not included)
• Application: Motor control and protection

Common Replacements:

• Schneider Electric LC1D18 + LRD18 combination
• Schneider Electric GV2ME + LC1D18 starter setup
• Schneider Electric LD1LD030FC
