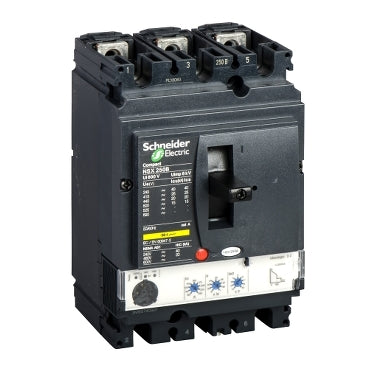

Schneider Electric LV431870 Solid State Compact NSX Molded Case Circuit Breakers LV431870

Description:

The Schneider Electric LV431870 Solid State Compact NSX Molded Case Circuit Breaker is used in industrial automation and electrical distribution systems to provide reliable circuit protection against overloads and short circuits. This breaker is part of the Schneider Electric Compact NSX series and incorporates solid-state trip technology to deliver precise and dependable protection for electrical circuits and equipment. It is commonly installed in electrical distribution panels, motor control centers, and industrial control cabinets where dependable circuit protection is required. Maintenance teams and system integrators frequently use this circuit breaker for system upgrades, replacement of faulty breakers, and installation in modern industrial power distribution systems.

Applications:

The Schneider Electric LV431870 circuit breaker is commonly used in industrial environments including manufacturing production lines, commercial electrical distribution systems, motor control centers, building power systems, and automation control panels where reliable protection against electrical faults helps protect equipment and maintain system uptime.

Technical Specifications:

• Manufacturer: Schneider Electric
• Model: LV431870
• Product Type: Molded Case Circuit Breaker (MCCB)
• Series: Compact NSX
• Poles: 3 Pole
• Rated Current: 160 A frame size
• Trip Unit Type: Solid state electronic trip unit
• Rated Operational Voltage: Up to 690 V AC
• Breaking Capacity: High breaking capacity for industrial power distribution
• Protection Functions: Overload protection and short-circuit protection
• Mounting Type: Panel mount / distribution panel installation
• Terminal Type: Screw or bolt-on power terminals
• Protection Rating: Industrial rated protection design
• Operating Temperature Range: Industrial rated conditions
• Application Category: Industrial power distribution and circuit protection

Common Replacements:

• Schneider Electric LV431630
• Schneider Electric LV432630
• Schneider Electric LV430840
