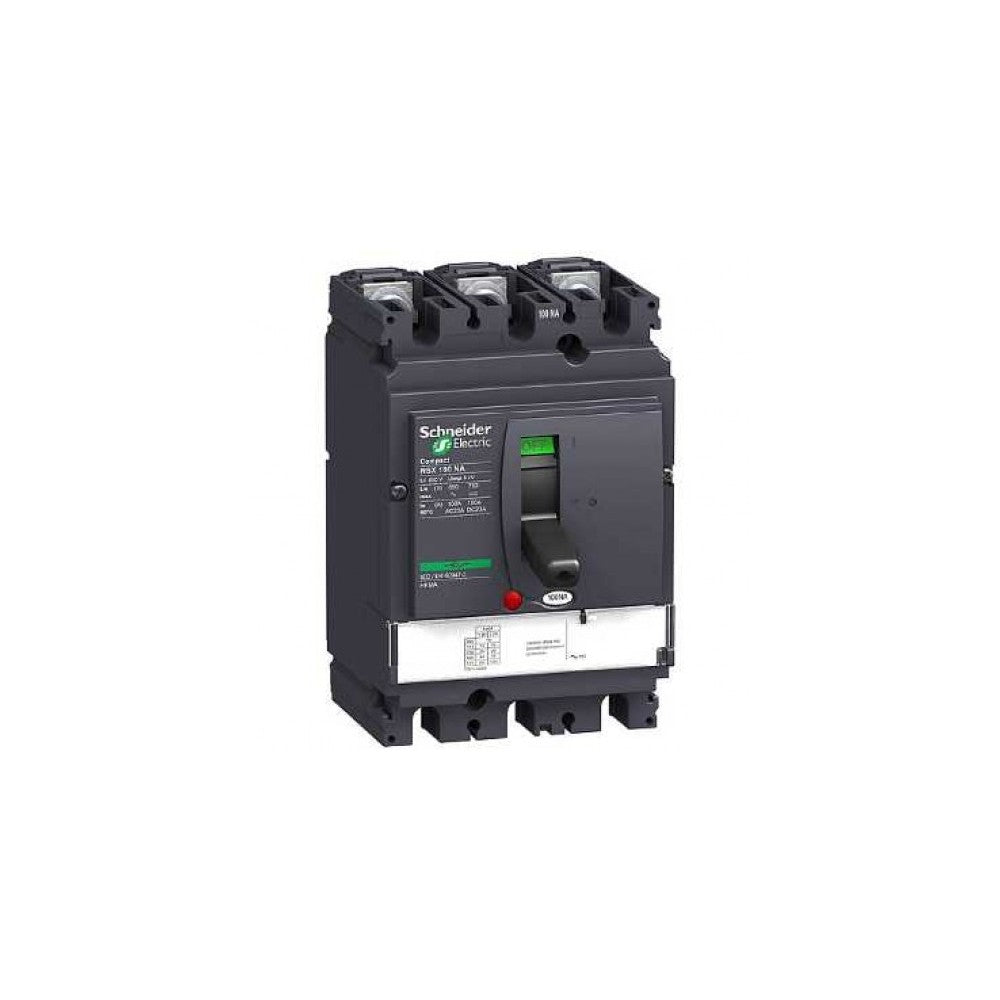

Schneider Electric LV432756 Compact 3P MICROLOGIC 0.3 NA 3P Switch Disconnector LV432756

Description:

The Schneider Electric LV432756 Compact 3-Pole Switch Disconnector is used in industrial automation and electrical distribution systems to provide safe manual isolation of power circuits. This device is part of the Schneider Electric Compact NSX series and is designed to disconnect electrical loads for maintenance, servicing, and safety procedures. The switch disconnector allows operators to isolate equipment from the power supply while maintaining reliable electrical continuity during normal operation. It is commonly installed in electrical distribution panels, industrial control cabinets, and motor control centers where dependable circuit isolation is required.

Applications:

The Schneider Electric LV432756 switch disconnector is commonly used in industrial environments including manufacturing production lines, power distribution panels, motor control centers, building electrical systems, and industrial automation control cabinets where safe manual disconnection of electrical circuits improves system safety and maintenance procedures.

Technical Specifications:

• Manufacturer: Schneider Electric
• Model: LV432756
• Product Type: Switch Disconnector
• Series: Compact NSX
• Poles: 3 Pole
• Rated Operational Current: 250 A frame size
• Rated Operational Voltage: Up to 690 V AC
• Trip Unit: MicroLogic 0.3 NA
• Mounting Type: Panel mounted device
• Terminal Type: Bolt-on power terminals
• Control Type: Manual switching mechanism
• Protection Rating: Industrial rated electrical isolation device
• Operating Temperature Range: Industrial rated conditions
• Function: Manual isolation and disconnection of power circuits

Common Replacements:

• Schneider Electric LV432630
• Schneider Electric LV432840
• Schneider Electric LV432950
