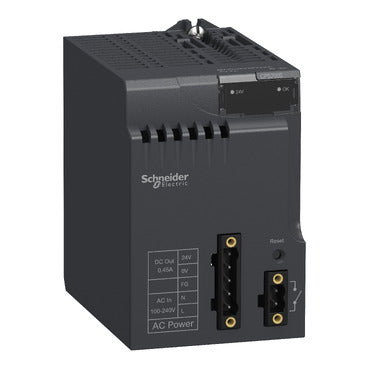

Schneider Electric Modicon Programmable Logic Controller BMXCPS2000 STANDARD POWER SUPPLY

Description:

The Schneider Electric BMXCPS2000 Power Supply Module is used in Modicon X80 PLC systems to provide stable AC-to-DC power for processors and I/O modules. Commonly installed in industrial control panels, manufacturing systems, and process automation equipment where reliable PLC power is required. Maintenance teams and system integrators use this module for replacement, system expansion, and upgrades to maintain consistent operation and uptime.

Applications:

The Schneider Electric BMXCPS2000 module is widely used in industrial automation environments to supply power to PLC racks and associated control components. It is deployed in manufacturing plants, energy systems, material handling, and process industries to ensure stable operation of CPUs, I/O modules, and communication networks. With reliable AC input and regulated DC outputs, it supports continuous system performance in critical automation applications.

Technical Specifications:

• Manufacturer: Schneider Electric
• Model / Part Number: BMXCPS2000
• Product Type: PLC Power Supply Module
• Platform Compatibility: Modicon X80 (M340 / M580)
• Input Voltage: 100–240 VAC (85–264 VAC range)
• Frequency: 50/60 Hz (47–63 Hz range)
• Power Rating: 20 W
• Secondary Output:
– 24 V DC (10.8 W sensor supply, 16.8 W I/O/CPU supply)
– 3.3 V DC (8.3 W logic supply)
• Output Current: Up to 0.7 A (24V DC) / 2.5 A (3.3V DC)
• Apparent Power: 0.07 kVA
• Protection Features: Overload, overvoltage, short-circuit protection
• Indicators: LED status indicators (rack voltage, sensor voltage)
• Connection: 2-pin alarm relay, 5-pin power connector
• Mounting: Rack-mounted module
• Enclosure Rating: IP20
• Operating Temperature: 0°C to 60°C

Common Replacements:

• Schneider Electric BMXCPS3500
• Schneider Electric BMXCPS4002S
• Schneider Electric TSXPSY2600M
