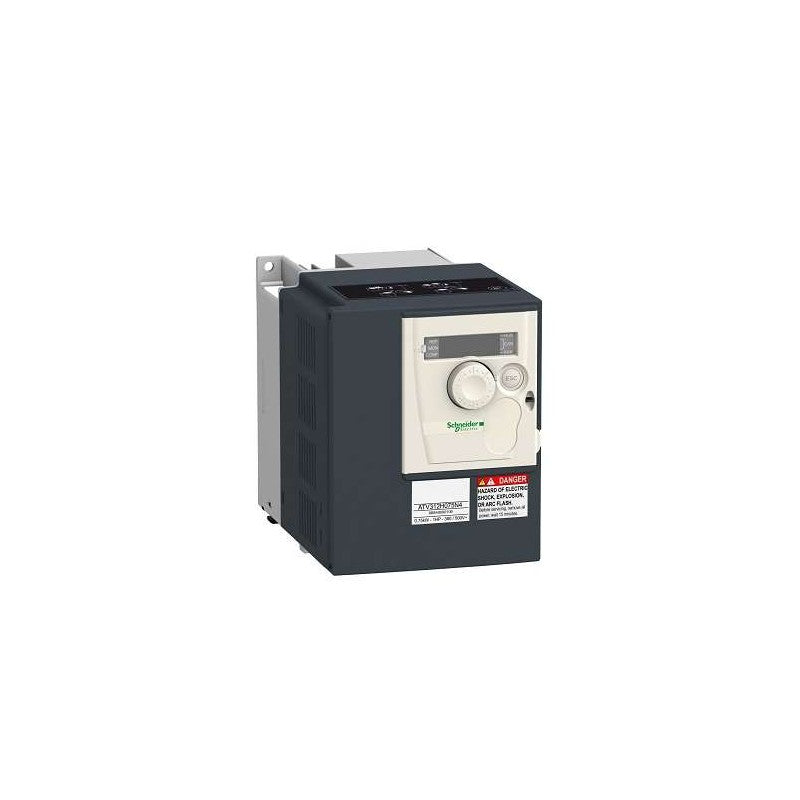

Schneider Electric Telemecanique ATV312H075N4 Motor Inverter AC DRIVE 1 HP 480VAC 3 PHASE

Description:

The Schneider Electric ATV312H075N4 AC Drive is a 1 HP variable frequency drive used in industrial motor control systems to regulate speed and torque of three-phase motors. Commonly installed in conveyors, pumps, fans, and light industrial machinery where precise motor control is required. Maintenance teams and system integrators use this drive for replacement, retrofit, and system upgrades to improve efficiency and performance.

Applications:

The Schneider Electric ATV312H075N4 drive is widely used in industrial automation environments to control asynchronous motors in small to mid-size applications. It is deployed in manufacturing systems, material handling equipment, HVAC systems, and packaging machines to optimize motor speed, reduce energy consumption, and improve process control. With compact design and flexible control modes, it supports efficient operation in a wide range of industrial processes.

Technical Specifications:

• Manufacturer: Schneider Electric
• Model / Part Number: ATV312H075N4
• Product Type: AC Variable Frequency Drive (VFD)
• Series: Altivar 312
• Motor Power Rating: 0.75 kW / 1 HP
• Input Voltage: 380–500 VAC, 3-phase
• Output Voltage: Up to input voltage (3-phase output)
• Output Frequency Range: 0–500 Hz
• Output Current: ~2.3 A continuous
• Control Methods: V/F control, sensorless vector control
• Communication: Modbus and CANopen (built-in)
• I/O: 6 digital inputs, multiple analog inputs/outputs
• Overload Capacity: Up to 150% for 60 seconds
• Protection Features: Overload, overvoltage, undervoltage, short-circuit, phase loss
• Mounting: Panel mount (IP20)
• Application: Industrial motor speed and torque control

Common Replacements:

• Schneider Electric ATV320U07N4C
• Schneider Electric ATV312H075M3
• Schneider Electric ATV930U07N4
