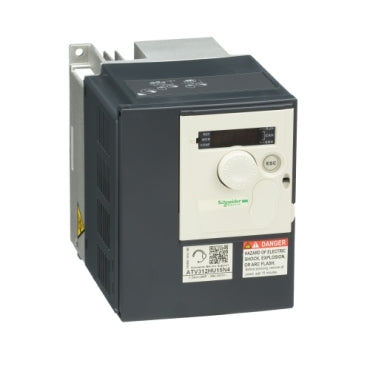

Schneider Electric Telemecanique ATV312HU15N4 INVERTER DRIVE ELECTRIC

Description:

The Schneider Electric ATV312HU15N4 AC Drive is a 1.5 kW variable frequency drive used in industrial motor control systems to regulate speed and torque of three-phase motors. Commonly installed in conveyors, pumps, fans, and light industrial machinery where precise motor control is required. Maintenance teams and system integrators use this drive for replacement, retrofit, and system upgrades to improve efficiency and performance.

Applications:

The Schneider Electric ATV312HU15N4 drive is widely used in industrial automation environments to control asynchronous motors in small to mid-size applications. It is deployed in manufacturing systems, material handling equipment, HVAC systems, and packaging machines to optimize motor speed, reduce energy consumption, and improve process control. With compact design and integrated communication, it is well-suited for simple machine applications requiring reliable motor regulation.

Technical Specifications:

• Manufacturer: Schneider Electric
• Model / Part Number: ATV312HU15N4
• Product Type: AC Variable Frequency Drive (VFD)
• Series: Altivar 312
• Motor Power Rating: 1.5 kW / 2 HP
• Input Voltage: 380–500 VAC, 3-phase
• Apparent Power: ~4.2 kVA
• Output Current: ~4.1–6.4 A
• Output Frequency Range: 0–500 Hz
• Control Methods: V/F control, sensorless vector control
• Communication: Modbus and CANopen (built-in)
• Overload Capacity: 150% for 60 seconds
• EMC Filter: Integrated
• Mounting: Panel mount (IP20)
• Application: Industrial motor speed and torque control

Common Replacements:

• Schneider Electric ATV320U15N4C
• Schneider Electric ATV310HU15N4E
• Schneider Electric ATV930D15N4
