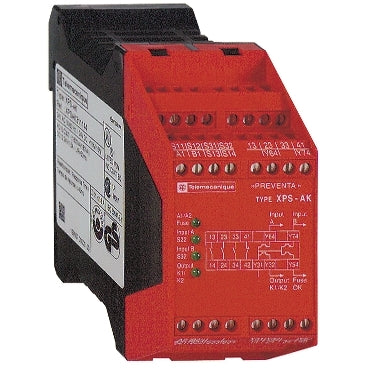

Schneider Electric Telemecanique Electric XPS-AK311144 XPSAK311144 24VDC Safety Relay XPSAK311144

Description:

The Schneider Electric Telemecanique Electric XPS-AK311144 Safety Relay is used in industrial automation systems to monitor safety circuits and ensure safe machine shutdown when hazardous conditions occur. This relay is part of the Schneider Electric Preventa safety relay family and is designed to supervise emergency stop circuits, safety gates, and other protective devices. It is commonly installed in industrial control panels and machine safety systems where reliable monitoring of safety inputs is required. Maintenance teams and system integrators frequently use this module for machine safety upgrades, replacement of failed safety relays, and integration of safety functions into automated equipment.

Applications:

The Schneider Electric XPSAK311144 safety relay is commonly used in industrial environments including manufacturing production lines, packaging machinery, robotic work cells, material handling systems, automated assembly equipment, and safety-critical machine control systems where dependable monitoring of emergency stop circuits and safety devices protects operators and machinery.

Technical Specifications:

• Manufacturer: Schneider Electric (Telemecanique)
• Model: XPS-AK311144
• Product Type: Preventa Safety Relay Module
• Series: Preventa XPS-AK
• Supply Voltage: 24 V AC / 24 V DC
• Safety Category: Category 4 safety monitoring
• Safety Outputs: 3 NO safety relay outputs
• Auxiliary Outputs: 1 NC auxiliary contact + 4 transistor outputs
• Output Current Rating: Up to 6 A per relay output
• Control Circuit Voltage: 24 V DC
• Mounting Type: 35 mm DIN rail
• Terminal Type: Screw terminals
• Protection Rating: IP20 terminals / IP40 enclosure
• Indicators: LED status indicators
• Operating Temperature Range: −10°C to 55°C
• Function: Monitoring emergency stop circuits and machine safety devices

Common Replacements:

• Schneider Electric XPSUAK12AP
• Schneider Electric XPSUAF13AP
• Pilz 750104 PNOZ S4 24VDC Safety Relay
