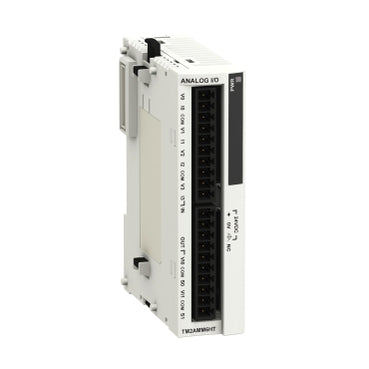

Schneider Electric TM2AMM6HT PLC TWIDO ANALOG MIXED I/O MODULE EXPANSION TM2AMM6HT

Description:

The Schneider Electric TM2AMM6HT PLC Twido Analog Mixed I/O Module is used in industrial automation systems to expand PLC functionality by providing both analog input and analog output channels in a single module. This expansion module is designed for the Modicon M238 logic controller and Twido automation platforms, allowing automation systems to monitor and control analog signals such as voltage and current from sensors and field devices. It is commonly installed in industrial control panels where additional analog inputs and outputs are required for process monitoring and control. Maintenance teams and system integrators often use this module for system expansion, modernization of legacy Twido installations, and replacement of failed analog I/O modules.

Applications:

The Schneider Electric TM2AMM6HT module is commonly used in industrial environments including manufacturing production lines, packaging machinery, water and wastewater systems, HVAC control panels, material handling equipment, and process automation installations where analog signal monitoring and control improve system accuracy and operational efficiency.

Technical Specifications:

• Manufacturer: Schneider Electric
• Model: TM2AMM6HT
• Product Type: Analog Mixed Input/Output Expansion Module
• PLC Platform: Modicon M238 / Twido
• Analog Inputs: 4 channels
• Analog Outputs: 2 channels
• Input Signal Types: 0–10 V voltage or 4–20 mA current (non-differential)
• Output Signal Types: 0–10 V voltage or 4–20 mA current
• Input Resolution: 12-bit
• Output Resolution: 12-bit
• Supply Voltage: 24 V DC
• Supply Voltage Range: 19.2–30 V DC
• Conversion Time: Approx. 20 ms plus controller cycle time
• Electrical Connection: Removable screw terminal block
• Mounting Type: DIN rail or panel mounted
• Dimensions: Approx. 90 × 70 × 23.5 mm
• Weight: Approx. 0.085 kg
• Function: Provides analog signal acquisition and output control for PLC systems

Common Replacements:

• Schneider Electric TM3AM6
• Schneider Electric TM3AM6G
• Schneider Electric BMXAMI0410
