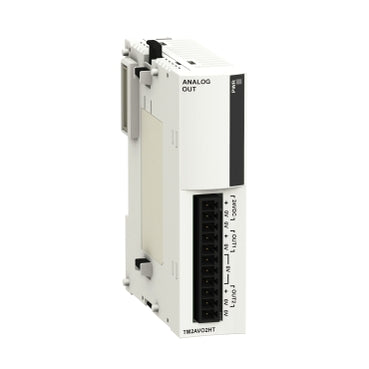

Schneider Electric TM2AVO2HT Programmable Controller 2Out Analog Expansion TM2AVO2HT

Description:

The Schneider Electric TM2AVO2HT analog output expansion module is used in industrial automation systems to provide additional analog voltage outputs for Modicon programmable logic controllers. This module allows PLC systems to send analog control signals to field devices such as variable frequency drives, control valves, and other process equipment. It is commonly installed in automated manufacturing lines, machine control panels, and industrial process control systems where precise analog signal control is required. Maintenance technicians and system integrators use this module for system expansion, retrofit upgrades, and replacement of failed PLC analog output modules in Modicon control architectures.

Applications:

The Schneider Electric TM2AVO2HT analog output module is widely used in industrial automation environments including manufacturing equipment, packaging machinery, conveyor systems, water treatment facilities, HVAC control systems, and process control installations where PLC systems must generate analog control signals to regulate equipment performance.

Technical Specifications:

• Manufacturer: Schneider Electric
• Model: TM2AVO2HT
• Product Type: PLC Analog Output Expansion Module
• Series: Modicon M238 Expansion I/O
• Analog Outputs: 2 analog voltage output channels
• Output Type: Voltage ±10 V
• Output Resolution: 11 bits + sign
• Supply Voltage: 24 V DC
• Supply Voltage Range: 19.2 – 30 V DC
• Current Consumption: 60 mA at 24 V DC
• Isolation: 2500 V isolation between I/O and internal logic
• Electrical Connection: Removable screw terminal block
• Load Impedance: ≤ 3000 Ohm (resistive load)
• Compatibility: Modicon M238 logic controllers, Advantys OTB, Twido systems
• Function: Provides analog voltage outputs for PLC-based control systems

Common Replacements:

• Schneider Electric TM3AQ2
• Schneider Electric TM3AQ4
• Schneider Electric BMXAMO0210
