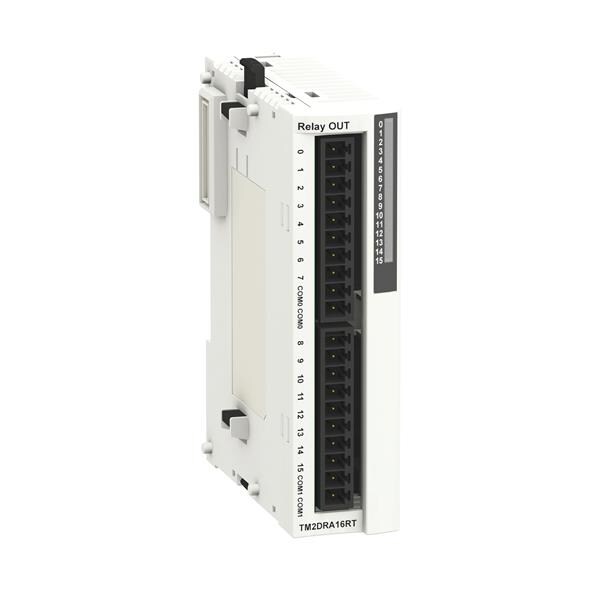

Schneider Electric TM2DRA16RT 40mA 24VDC Discrete Output Expansion Module PLC TM2DRA16RT

Description:

The Schneider Electric TM2DRA16RT Discrete Output Module is a 16-point relay output expansion module used in Modicon M238 PLC systems to control field devices. Commonly installed in industrial automation systems, control panels, and machinery where reliable switching of outputs is required. Maintenance teams and system integrators use this module for system expansion, replacement, and upgrades to ensure dependable control of actuators and devices.

Applications:

The Schneider Electric TM2DRA16RT module is widely used in industrial automation environments to control discrete output devices such as relays, solenoids, motors, and contactors. It is deployed in manufacturing systems, conveyor lines, packaging machines, and HVAC systems where multiple output channels are required. With relay-based outputs and high isolation, it provides flexible and reliable switching for both AC and DC loads in demanding industrial applications.

Technical Specifications:

• Manufacturer: Schneider Electric
• Model / Part Number: TM2DRA16RT
• Product Type: Discrete Output Module (Relay)
• Platform Compatibility: Modicon M238, Twido, Advantys OTB
• Number of Outputs: 16 relay outputs
• Output Type: Normally Open (NO) relay
• Rated Voltage: 24 VDC / 230–240 VAC
• Maximum Voltage: 30 VDC / 264 VAC
• Output Current: Up to 2 A per channel
• Current per Common: 8 A
• Response Time: ≤10 ms switching
• Isolation: Up to 2300 V between channels and logic
• Connection Type: Removable screw terminal block
• Mounting: 35 mm DIN rail
• Current Consumption: ~40 mA at 24 VDC
• Application: Control of industrial output devices

Common Replacements:

• Schneider Electric TM2DRA8RT
• Schneider Electric TM2DDO16UK
• Schneider Electric TM3DQ16R
