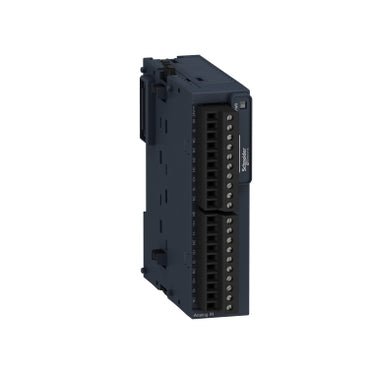

Schneider Electric TM3-4 INPUTS TEMPERATURE TM3TI4

Description:

The Schneider Electric TM3TI4 Analog Input Module is a 4-channel temperature and analog input module used in Modicon TM3 PLC systems to acquire precise field signals. Commonly installed in industrial automation systems, process control equipment, and manufacturing lines where temperature and analog monitoring is required. Maintenance teams and system integrators use this module for system expansion, replacement, and upgrades to ensure accurate data acquisition and control performance.

Applications:

The Schneider Electric TM3TI4 module is widely used in industrial automation environments to monitor temperature and analog signals from field devices. It is deployed in manufacturing plants, HVAC systems, energy management, and process industries to interface with thermocouples, RTDs, and analog sensors. With high-resolution signal processing and multiple input types, this module enables reliable monitoring and control of critical process variables across industrial systems.

Technical Specifications:

• Manufacturer: Schneider Electric
• Model / Part Number: TM3TI4
• Product Type: Analog / Temperature Input Module
• Platform Compatibility: Modicon M221, M241, M251, M262 PLCs
• Number of Inputs: 4 analog channels
• Signal Types: Voltage, current, thermocouple, RTD
• Input Ranges: 0–10V, ±10V, 0–20mA, 4–20mA
• Temperature Inputs: Type J, K, R, S, B, E, T, N, C; Pt100, Pt1000, Ni100, Ni1000
• Resolution: Up to 16-bit (15-bit + sign)
• Supply Voltage: 24 VDC
• Mounting: DIN rail or panel mount
• Connection Type: Removable screw terminal
• Protection Rating: IP20
• Operating Temperature: -10°C to 55°C
• Application: Temperature and analog signal acquisition

Common Replacements:

• Schneider Electric TM3TI4G
• Schneider Electric BMXART0814
• Schneider Electric BMEAHI0812
