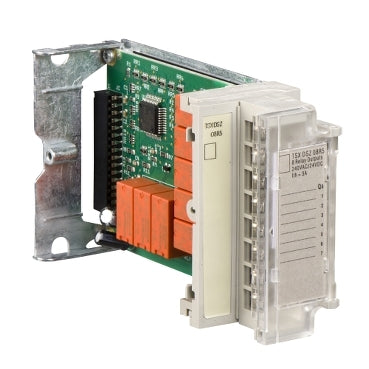

Schneider Electric TSXDSZ08R5 Output Relay TSXDSZ08R5

Description:

The Schneider Electric TSXDSZ08R5 relay output module is used in Modicon TSX Micro programmable logic controller systems to provide discrete relay outputs for industrial automation control applications. This module allows PLC systems to switch external devices such as motors, valves, alarms, and contactors through relay-based outputs integrated into the controller architecture. It is commonly installed in industrial control panels, automated production lines, and process control systems where reliable relay switching and PLC-controlled outputs are required. Maintenance technicians and system integrators use this module for system expansion, replacement of failed PLC output modules, and upgrades to Modicon automation platforms.

Applications:

The Schneider Electric TSXDSZ08R5 relay output module is widely used in industrial automation environments including manufacturing machinery, conveyor systems, packaging equipment, process control systems, water treatment plants, and industrial control panels where PLC-based systems must control external devices through relay outputs.

Technical Specifications:

• Manufacturer: Schneider Electric
• Model: TSXDSZ08R5
• Product Type: PLC Relay Output Module
• Series: Modicon TSX Micro
• Output Channels: 8 discrete relay outputs
• Contact Type: Normally Open (NO) relay contacts
• Output Voltage Range: 19–264 V AC
• Output Voltage Range (DC): 10–34 V DC
• Maximum Thermal Current: 3 A per output
• Response Time: < 10 ms
• Current Consumption: 85 mA
• Power Dissipation: 1.5 W
• Isolation Voltage: 1500 V
• Terminal Type: Screw terminal block
• Mounting Type: PLC rack / controller base installation
• Function: Provides relay-based output switching for PLC-controlled devices

Common Replacements:

• Schneider Electric TM3DQ8R
• Schneider Electric BMXDDO1602
• Schneider Electric TM221CE24R
