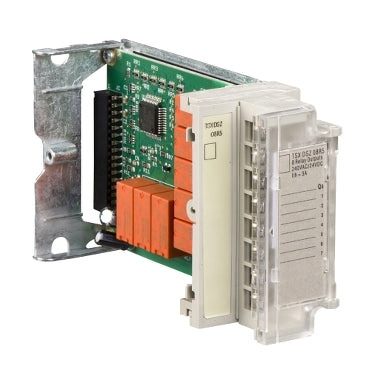

Schneider Electric TSXDSZ32R5 TSX DSZ 32R5 Output Module TSXDSZ32R5

Description:

The Schneider Electric TSXDSZ32R5 Output Module is used in Modicon TSX Micro PLC systems for discrete relay output control. Commonly installed in industrial automation systems, machine control panels, and manufacturing process equipment. Maintenance teams, OEMs, and system integrators use this module for system expansion, output control, and replacement of PLC output modules in automation systems.

Applications:

The Schneider Electric TSXDSZ32R5 output module is used in industrial environments such as manufacturing plants, infrastructure systems, and machine automation to control actuators, relays, and output devices through PLC commands, enabling reliable switching and control of industrial processes.

Technical Specifications:

• Manufacturer: Schneider Electric
• Model / Part Number: TSXDSZ32R5
• Product Type: Relay Discrete Output Module
• Series: Modicon TSX Micro
• Number of Outputs: 32 channels
• Output Type: Relay (Normally Open contacts)
• Output Voltage Range: 19–264 V AC / 10–34 V DC
• Output Current: Up to 2 A (thermal)
• Response Time: < 10 ms
• Power Consumption: Approx. 3.5 W
• Current Consumption: 175 mA
• Connection Type: Screw terminal block
• Mounting: PLC rack (TSX Micro system)
• Isolation Voltage: 1500 V
• Compliance: RoHS, CE standards

Common Replacements:

• Schneider Electric TSXDSZ08R5
• Schneider Electric TSXDMZ28DR
• Schneider Electric BMXDDO3202
