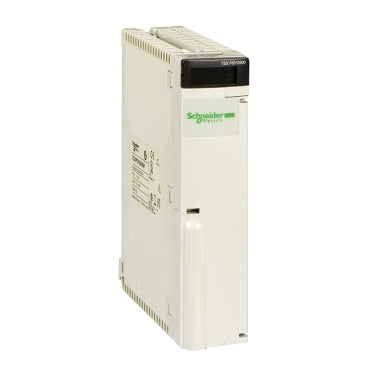

Schneider Electric TSXPSY2600M PSY 2600M CPS POWER SUPPLIES 100/240VAC 26WATT TSXPSY2600M

Description:

The Schneider Electric TSXPSY2600M Power Supply Module is used in Modicon Premium PLC systems to provide stable AC-to-DC power for automation control components. Commonly installed in industrial control panels, manufacturing systems, and process automation equipment where reliable PLC power is required. Maintenance teams and system integrators use this module for replacement, repair, and retrofit of existing PLC power supplies to maintain system uptime.

Applications:

The Schneider Electric TSXPSY2600M is widely used in industrial automation environments to supply consistent power to PLC racks and associated control modules. It is deployed in manufacturing plants, material handling systems, packaging lines, and process control applications where dependable power is critical for continuous operation. This module ensures proper functioning of CPUs, I/O modules, and communication systems within Modicon Premium platforms, supporting stable and efficient industrial processes.

Technical Specifications:

• Manufacturer: Schneider Electric
• Model / Part Number: TSXPSY2600M
• Product Type: PLC Power Supply Module
• Platform Compatibility: Modicon Premium Automation Platform
• Input Voltage: 100–240 VAC (85–264 VAC range)
• Frequency: 50/60 Hz
• Input Current: 300 mA (240V), 500 mA (100V)
• Total Output Power: 26 Watts
• Output Voltage: 5 VDC and 24 VDC
• Output Current: 5 A (5 VDC), 0.5–0.6 A (24 VDC)
• Protection Features: Short-circuit, overload, and overvoltage protection
• Indicators: LED status indicators (OK, BAT, 24V)
• Mounting Type: Rack-mounted PLC module
• Enclosure Rating: IP20

Common Replacements:

• Schneider Electric BMXCPS2000
• Schneider Electric TSXPSY2600MC
• Schneider Electric TSXPSY1610MC
