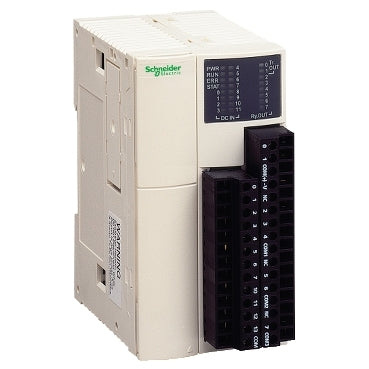

Schneider Electric TWDLMDA20DRT Base Unit TWDLMDA20DRT

Description:

The Schneider Electric TWDLMDA20DRT Base Unit is a modular PLC controller used in industrial automation systems to manage discrete inputs and outputs for machine control. Commonly installed in manufacturing equipment, material handling systems, and building automation panels where compact PLC control is required. Maintenance teams and system integrators use this unit for system deployment, replacement, and expansion to ensure reliable control and operation.

Applications:

The Schneider Electric TWDLMDA20DRT is widely used in small to medium industrial automation environments to control machinery and processes. It is deployed in packaging machines, conveyor systems, HVAC systems, and OEM equipment where discrete control logic is required. With integrated I/O and expansion capability, it provides a compact and scalable solution for controlling sensors, actuators, and relays in industrial applications.

Technical Specifications:

• Manufacturer: Schneider Electric
• Model / Part Number: TWDLMDA20DRT
• Product Type: PLC Base Unit (Modular Controller)
• Platform: Twido Series
• Total I/O: 20 discrete I/O
• Inputs: 12x digital inputs (24 VDC)
• Outputs: 8 outputs (6 relay + 2 transistor)
• Input Logic: Sink or source
• Supply Voltage: 24 V DC
• Power Consumption: Approx. 19 W
• Resolution: 9-bit
• Expansion Capability: Supports up to 7 expansion modules
• Mounting: DIN rail or panel mount
• Indicators: LED status indicators
• Application: Discrete control and automation

Common Replacements:

• Schneider Electric TWDLMDA20DTK
• Schneider Electric TWDLMDA40DUK
• Schneider Electric TM221CE24R
