Schneider Electric XCR-F17 Limit Switch XCRF17

Description:

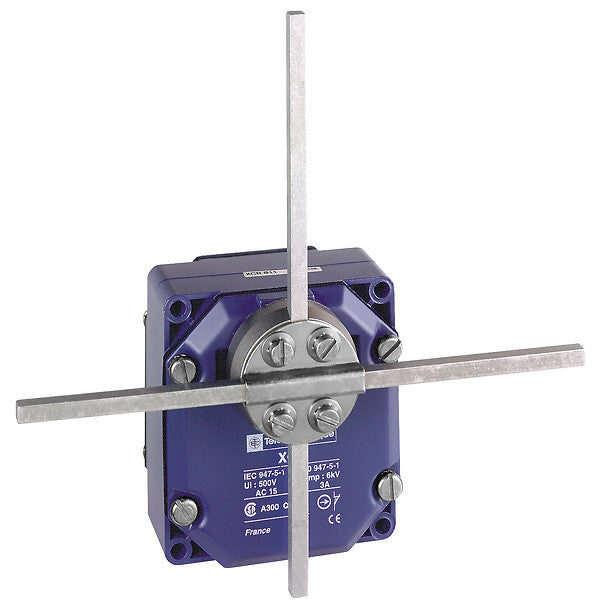

The Schneider Electric XCRF17 Limit Switch is a rotary lever limit switch used in industrial automation systems to convert mechanical motion into electrical control signals. Commonly installed in hoisting equipment, conveyors, and mechanical handling systems where position detection and motion control are required. Maintenance teams and system integrators use this switch for replacement, retrofit, and installation to ensure safe and reliable machine operation.

Applications:

The Schneider Electric XCRF17 limit switch is widely used in industrial environments for position sensing and machine safety control. It is deployed in cranes, elevators, conveyor systems, and material handling equipment to detect movement, limit travel, and trigger control actions. With a rugged metal housing and rotary lever actuator, it is well-suited for harsh environments where durability and consistent switching performance are critical.

Technical Specifications:

• Manufacturer: Schneider Electric
• Model / Part Number: XCRF17
• Product Type: Limit Switch
• Series: OsiSense XC (XCR range)
• Contact Configuration: 2 x (1 NO + 1 NC)
• Number of Poles: 4-pole
• Rated Voltage: Up to 240 VAC / 250 VDC
• Rated Current: 3A AC / 0.27A DC
• Actuator Type: Rotary lever with metal stay-put rods
• Operating Head: Rotary, lateral approach (2 directions)
• Mounting Type: Body-mounted
• Connection Type: Screw-clamp terminals
• Protection Rating: IP54
• Operating Temperature: -25°C to 70°C
• Mechanical Life: Up to 10 million operations
• Housing Material: Zinc alloy (metal)
• Application: Position sensing and limit control

Common Replacements:

• Schneider Electric XCKJ10513D
• Schneider Electric XCMD2102L1
• Schneider Electric XCKM115
