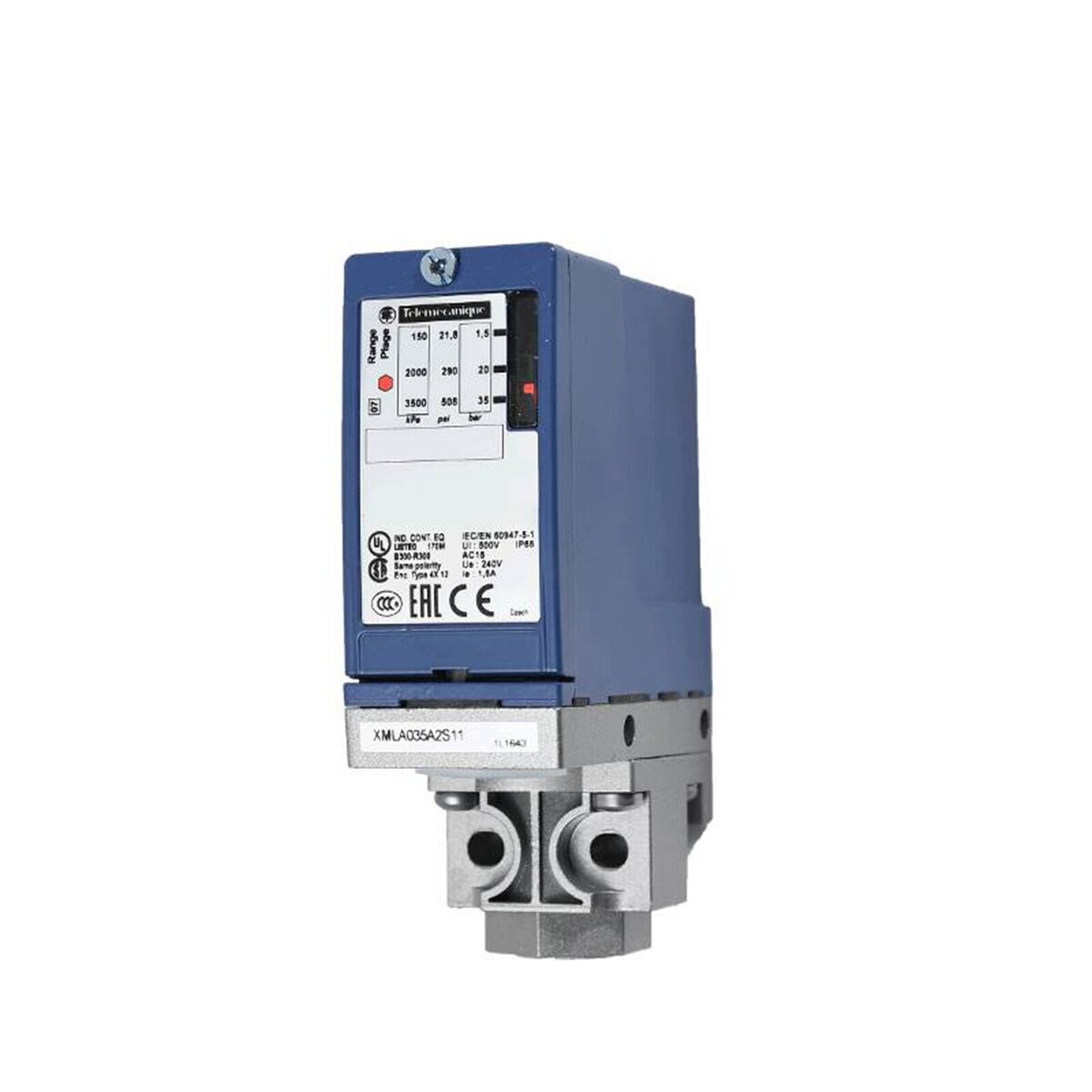

Schneider Electric XMLA035A2S11 Differential Pressure Switch Sensor XMLA035A2S11

Description:

The Schneider Electric XMLA035A2S11 Differential Pressure Switch Sensor is used in industrial automation and process control systems to monitor fluid pressure and trigger electrical switching when a defined pressure threshold is reached. This device is part of the Schneider Electric OsiSense XM pressure switch series and uses electromechanical sensing technology to detect pressure variations in hydraulic, pneumatic, and fluid systems. It is commonly installed in industrial machinery, pump systems, and process equipment where reliable pressure monitoring and automatic control of circuits are required. Maintenance teams and system integrators frequently use this pressure switch for equipment protection, process monitoring, and replacement of aging pressure sensing devices in industrial automation systems.

Applications:

The Schneider Electric XMLA035A2S11 pressure switch is commonly used in industrial environments including hydraulic systems, pump control systems, manufacturing production lines, water and wastewater facilities, HVAC systems, and process automation equipment where accurate pressure detection helps maintain safe and efficient system operation.

Technical Specifications:

• Manufacturer: Schneider Electric (Telemecanique Sensors)
• Model: XMLA035A2S11
• Product Type: Differential Pressure Switch Sensor
• Series: OsiSense XM
• Pressure Measurement Range: 1.5 to 35 bar
• Maximum Pressure Rating: Up to approximately 45 bar per cycle
• Output Type: Relay output (1 C/O contact)
• Differential Type: Fixed differential
• Electrical Rating: Up to 3 A AC switching capacity
• Process Connection: G 1/4 female thread
• Electrical Connection: Cable gland PG13.5 with screw terminals
• Enclosure Material: Zinc alloy housing
• Protection Rating: IP66
• Operating Temperature Range: −25°C to 70°C
• Repeat Accuracy: Approx. 2%
• Mechanical Durability: Up to 5 million operating cycles
• Function: Pressure monitoring and switching for control circuits

Common Replacements:

• Schneider Electric XMLA010A2S11
• Schneider Electric XMLA050A2S11
• Schneider Electric XMLB020A2S11
