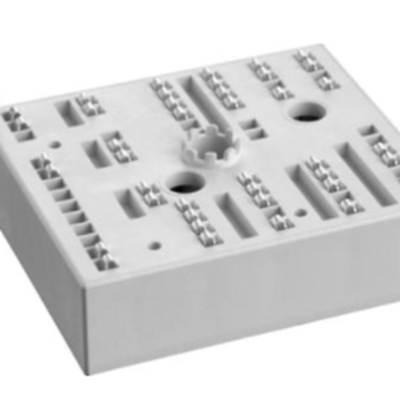

Semikron SKIIP22NAB12IT45 Power Supply Module SKIIP22NAB12IT45

Description:

The Semikron SKIIP22NAB12IT45 intelligent power module is used in industrial inverter and motor drive systems. Commonly installed in frequency converters, servo drives, and industrial power conversion equipment. Maintenance teams, OEMs, and system integrators use this part for replacement, retrofit, and high-efficiency power switching control.

Applications:

The Semikron SKIIP22NAB12IT45 is used in industrial automation systems for efficient control of high-voltage and high-current loads. It is widely deployed in motor drives, UPS systems, and renewable energy inverters where reliable power conversion is critical. With integrated gate drivers and protection features, it simplifies system design while ensuring stable operation in demanding industrial environments.

Technical Specifications:

• Manufacturer: Semikron
• Model / Part Number: SKIIP22NAB12IT45
• Product Type: Intelligent Power Module (IGBT / IPM)
• Voltage Rating: 1200 V
• Current Rating: 22 A
• Configuration: 3-phase inverter bridge
• Technology: Trench Field Stop IGBT
• Integrated Functions: Gate driver, protection circuits (overcurrent, overtemperature, undervoltage)
• Switching Frequency: Up to approx. 20 kHz
• Thermal Resistance: Approx. 0.5°C/W
• Operating Temperature: -40°C to +125°C
• Mounting: Heatsink mounting
• Package Type: SKiiP insulated package
• Compliance: RoHS compliant

Common Replacements:

• Semikron SKIIP20NAB12IT45
• Semikron SKIIP22NAC12IT45
• Semikron SKIIP22NAE12IT45
