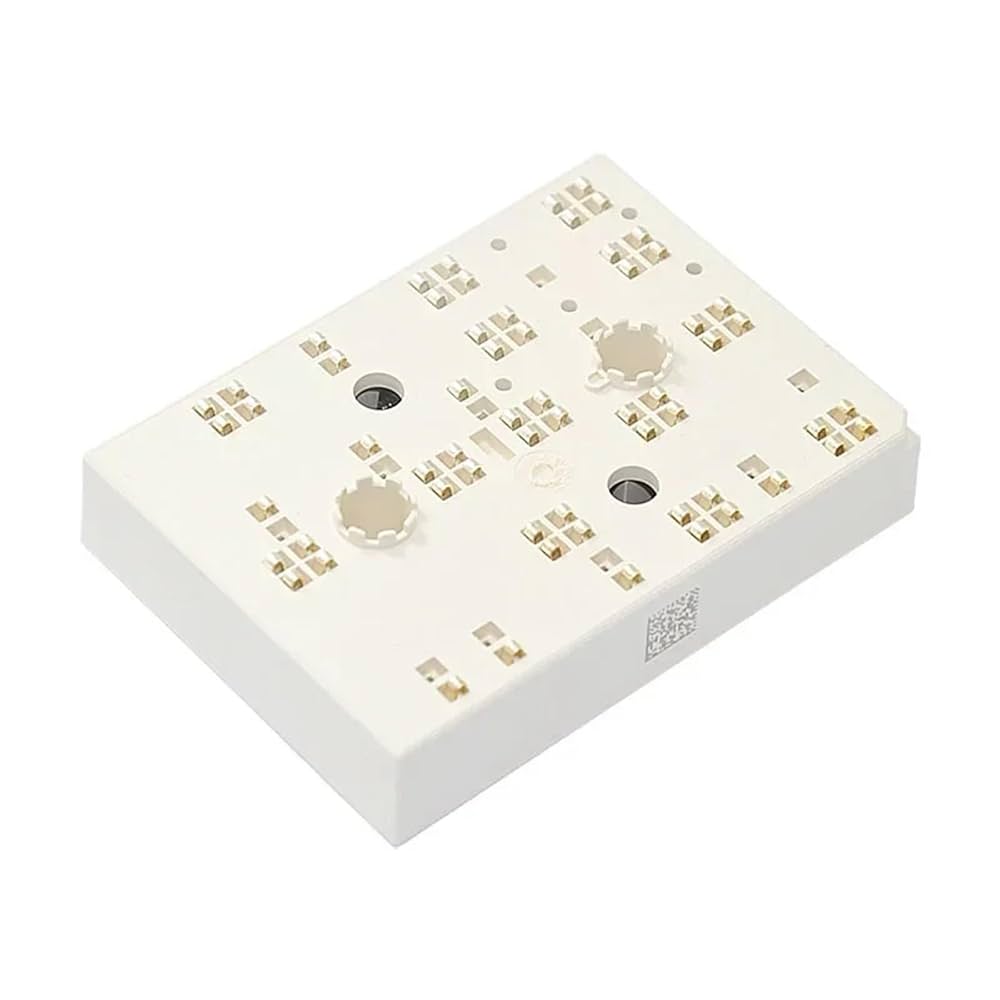

Semikron SKIIP32NAB12T1 IGBT Module SKIIP32NAB12T1

Description:

The Semikron SKIIP32NAB12T1 IGBT module is used in industrial inverter and power conversion systems. Commonly installed in motor drives, frequency converters, and renewable energy power systems. Maintenance teams, OEMs, and system integrators use this part for replacement, retrofit, and high-efficiency power switching applications.

Applications:

The Semikron SKIIP32NAB12T1 is used in industrial automation systems for controlling high-voltage and high-current loads. It is widely deployed in AC motor drives, servo systems, UPS units, and inverter applications where efficient and reliable power conversion is required. With integrated freewheeling diodes and advanced thermal performance, it ensures stable operation in demanding industrial environments.

Technical Specifications:

• Manufacturer: Semikron
• Model / Part Number: SKIIP32NAB12T1
• Product Type: IGBT Module (Intelligent Power Module)
• Voltage Rating: 1200 V
• Current Rating: 32 A (typical)
• Configuration: 3-phase inverter bridge with brake chopper
• Technology: Trench IGBT with fast switching capability
• Gate-Emitter Voltage: ±20 V
• Collector Current (max): Up to 65 A
• Peak Current: Up to 130 A
• Operating Junction Temperature: Up to +150°C
• Storage Temperature: -40°C to +125°C
• Package Type: MiniSKiiP / Case M-3 insulated module
• Mounting: Heatsink mounting (screw type)
• Features: Integrated freewheeling diodes, high thermal efficiency, compact design
• Compliance: RoHS compliant

Common Replacements:

• Semikron SKIIP30NAB12T1
• Semikron SKIIP32NAC12T1
• Semikron SKIIP39NAB12T1
