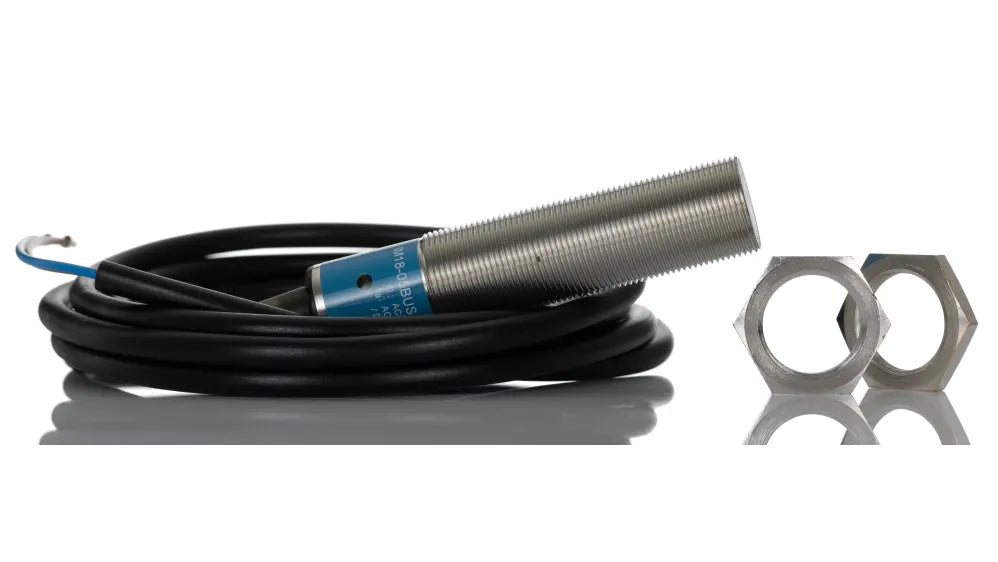

SICK IM18-05BUS-ZU0 Cylindrical Inductive Proximity Sensors IM1805BUSZU0

Description:

The SICK IM18-05BUS-ZU0 inductive proximity sensor is used in industrial automation detection and positioning systems. Commonly installed in conveyor systems, assembly machines, and metal detection applications. Maintenance teams, OEMs, and system integrators use this part for replacement, retrofit, and non-contact metal object detection.

Applications:

The Sick IM18-05BUS-ZU0 cylindrical inductive proximity sensor is used in industrial environments to detect metallic objects without physical contact. It is widely deployed in automation systems such as conveyor lines, robotic cells, and manufacturing equipment where reliable and wear-free detection is required. With its robust metal housing and precise sensing capability, it ensures consistent performance in harsh industrial conditions including dust, vibration, and oil exposure.

Technical Specifications:

• Manufacturer: SICK
• Model / Part Number: IM18-05BUS-ZU0
• Product Type: Inductive Proximity Sensor (Cylindrical)
• Sensing Distance: 5 mm
• Output Type: PNP switching output
• Output Function: Normally open (NO)
• Supply Voltage: 10–30 V DC
• Switching Frequency: Up to approx. 1000 Hz
• Connection Type: M12 connector
• Housing Size: M18 cylindrical
• Housing Material: Nickel-plated brass
• Protection Rating: IP67
• Operating Temperature: -25°C to +75°C
• Installation: Flush mountable
• Short Circuit Protection: Yes
• Reverse Polarity Protection: Yes

Common Replacements:

• SICK IM18-08BPS-ZC1
• SICK IME18-05BPSZW2S
• IFM IFS204
