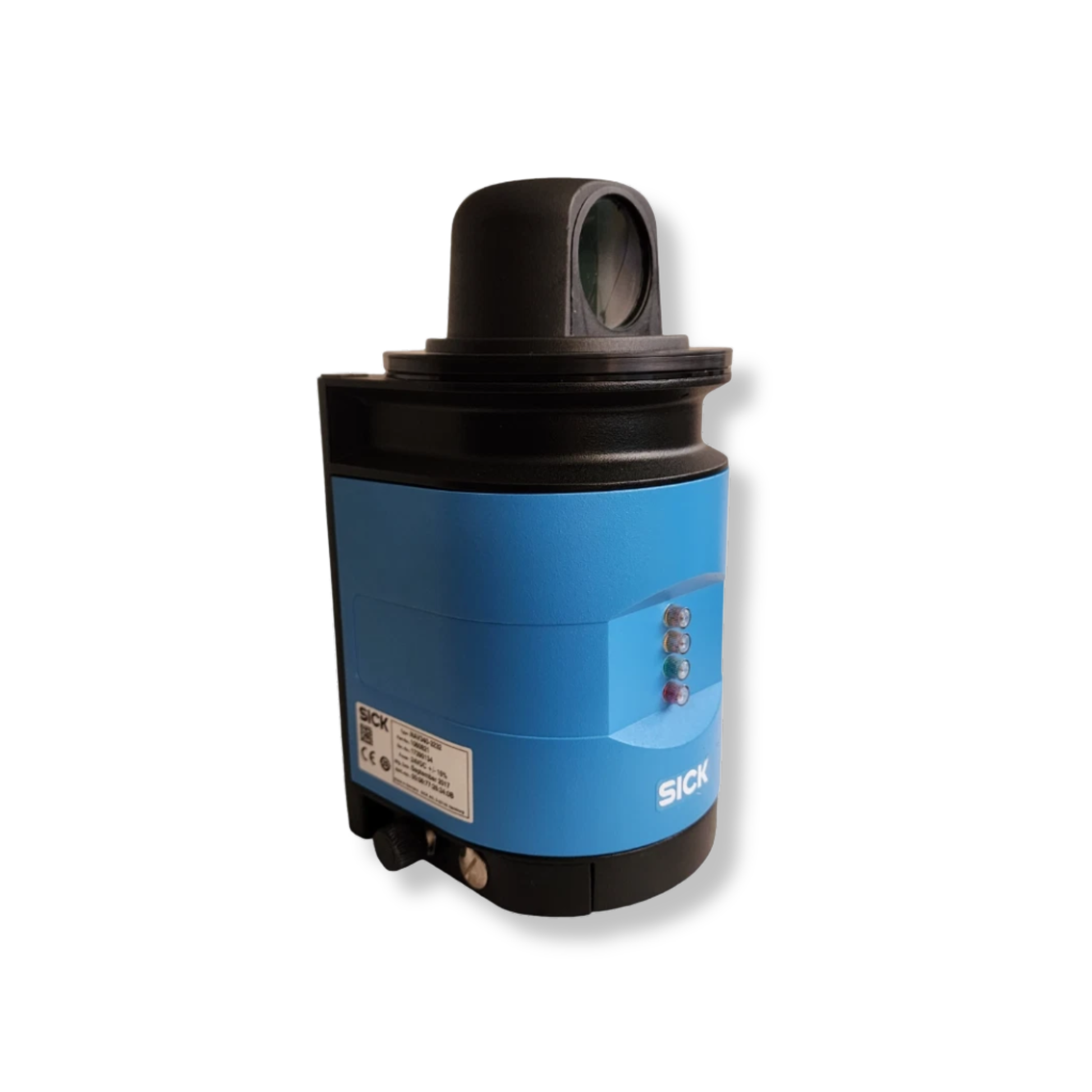

SICK NAV340-3232 NAV3XX INDOOR 2D LiDAR SENSOR NAV3403232 P 1060821
SICK NAV340-3232 NAV3XX INDOOR 2D LiDAR SENSOR NAV3403232 P 1060821
Brand:
SICK
Description:
The SICK NAV340-3232 NAV3xx indoor 2D LiDAR sensor is used in industrial automation and robotics systems to provide high-precision 2D distance scanning and contour detection for navigation, monitoring, and object detection. Commonly installed in automated guided vehicles (AGVs), mobile robots, industrial control systems, warehouse automation, and safety monitoring setups. Maintenance teams, system integrators, and OEMs use this sensor for system expansions, automation upgrades, retrofits, and replacement of outdated detection hardware.
Applications:
The SICK NAV340-3232 is commonly used for indoor mapping and navigation in AGVs and autonomous robots, perimeter and obstacle detection in warehouse systems, conveyor monitoring, material handling automation, and positional scanning where reliable 2D distance measurement and object detection are critical.
Technical Specifications:
• Manufacturer: SICK
• Part Number: NAV340-3232 (NAV3xx)
• Product Type: 2D LiDAR Sensor
• Scanning Range: 0.5 m … 250 m (0.5 m … 70 m on reflectors)
• Scanning Area: 360° horizontal scanning
• Light Source: 905 nm laser, Class 1
• Scanning Frequency: ~8 Hz ± 5%
• Angular Resolution: 0.25°
• Interfaces: Ethernet (TCP/IP), RS-232 serial
• Data Rate: Ethernet 100 Mbit/s; RS-232 19.2 … 115 kBaud
• Digital Outputs: 1 digital output
• Indicators: 4 LEDs for status
• Supply Voltage: 24 V DC ± 15%
• Power Consumption: 36 W
• Housing: Aluminum die cast, IP65 rated
• Ambient Temp: 0 °C … +50 °C; Storage: –20 °C … +80 °C
• Protection Class: III
• Weight: ~2.4 kg
• Reflector Recommendation: Stripes width ≥ 80 mm or cylindrical diameter ≥ 80 mm
• Application: Indoor industrial automation and navigation systems
Common Replacements:
• Another SICK NAV3xx series 2D LiDAR (e.g., NAV350-3232)
• Hokuyo UTM-30LX 2D LiDAR scanner
• Sick TiM561 2D LiDAR sensor
