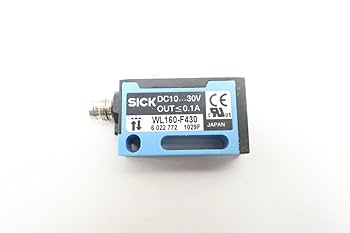

SICK WL160-F430 6022772 Photoelectric Sensor WL160F430

Description:

The SICK WL160-F430 6022772 photoelectric sensor is used in industrial automation detection and sensing systems. Commonly installed in conveyor systems, packaging machinery, and material handling equipment. Maintenance teams, OEMs, and system integrators use this part for replacement, retrofit, and reliable object detection in industrial environments.

Applications:

The Sick WL160-F430 6022772 retro-reflective photoelectric sensor is used in industrial automation to detect objects using a reflector for stable and long-range sensing. It is widely deployed in conveyor lines, pallet detection systems, and packaging machines where consistent and accurate detection is required. Its robust optical design ensures reliable performance even in environments with dust, vibration, and varying object surfaces.

Technical Specifications:

• Manufacturer: SICK
• Model / Part Number: WL160-F430 (6022772)
• Product Type: Photoelectric Sensor (Retro-reflective)
• Sensing Range: Up to approx. 6–8 m (with reflector)
• Light Source: Infrared LED
• Output Type: PNP switching output
• Output Function: Light/dark switching selectable
• Supply Voltage: 10–30 V DC
• Response Time: < 1 ms
• Switching Frequency: Up to approx. 500 Hz
• Connection Type: M12 connector
• Housing Material: Industrial-grade plastic
• Protection Rating: IP67
• Operating Temperature: -25°C to +55°C
• Mounting: Standard industrial mounting
• Detection Method: Reflector-based object detection

Common Replacements:

• SICK WL160-P430
• SICK WL170-P430
• SICK WL18-3P430
