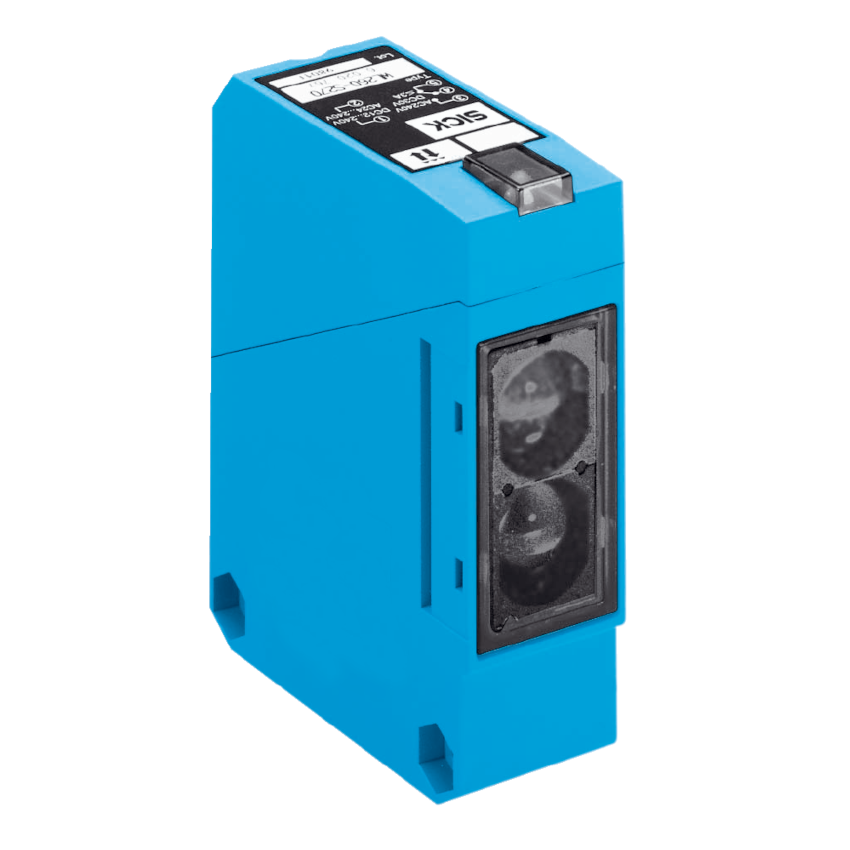

SICK WL260-R270 Reflex Photoelectric Switch PLC WL260R270

Description:

The SICK WL260-R270 reflex photoelectric switch sensor is used in industrial automation detection and sensing systems. Commonly installed in conveyor systems, packaging machinery, and material handling equipment. Maintenance teams, OEMs, and system integrators use this part for replacement, retrofit, and reliable object detection with reflector-based sensing.

Applications:

The Sick WL260-R270 retro-reflective (reflex) photoelectric sensor is used in industrial environments to detect objects using a reflector for extended sensing range and improved accuracy. It is widely deployed in conveyor lines, pallet detection systems, and packaging equipment where consistent detection is required over longer distances. Its robust optical system ensures stable operation even in dusty or high-interference industrial conditions.

Technical Specifications:

• Manufacturer: SICK
• Model / Part Number: WL260-R270
• Product Type: Photoelectric Sensor (Retro-reflective / Reflex)
• Sensing Range: Up to approx. 10 m (with reflector)
• Light Source: Infrared LED
• Output Type: PNP switching output
• Output Function: Light/dark switching selectable
• Supply Voltage: 10–30 V DC
• Response Time: < 1 ms
• Switching Frequency: Up to approx. 500 Hz
• Connection Type: Cable or connector (variant dependent)
• Housing Material: Industrial-grade plastic
• Protection Rating: IP65 / IP67
• Operating Temperature: -25°C to +55°C
• Mounting: Standard industrial mounting
• Detection Method: Reflector-based object detection

Common Replacements:

• SICK WL260-R230
• SICK WL250-P430
• SICK WL18-3P430
