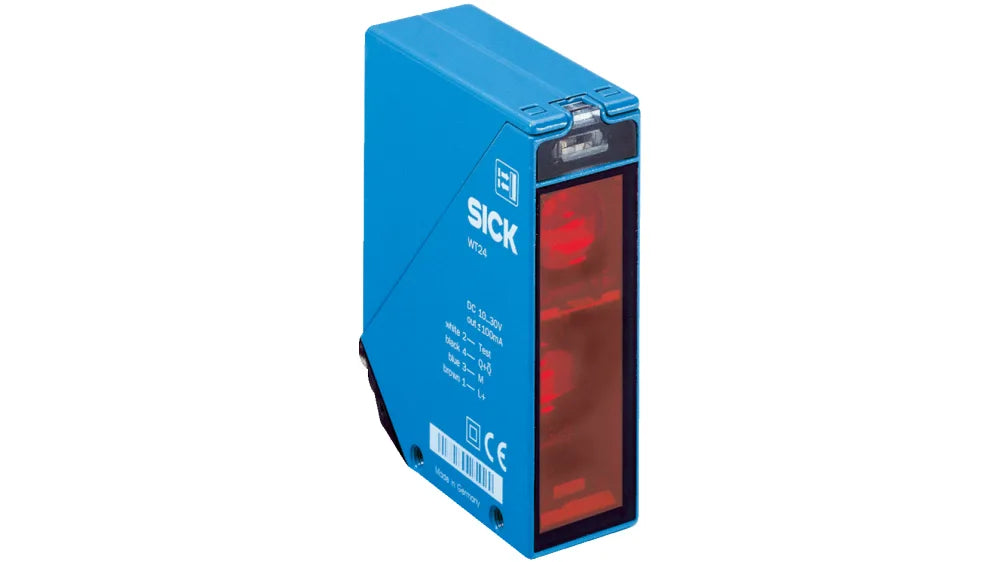

SICK WT24-2B210 PLC Photoelectric Sensors PNP/NPN 10~30VDC 100~2500MM WT242B210

Description:

The SICK WT24-2B210 photoelectric sensor is used in industrial automation detection and sensing systems. Commonly installed in conveyor systems, packaging machinery, and material handling equipment. Maintenance teams, OEMs, and system integrators use this part for replacement, retrofit, and versatile object detection.

Applications:

The Sick WT24-2B210 diffuse reflection photoelectric sensor is used in industrial environments to detect objects at variable distances without the need for a reflector. It is widely deployed in conveyor lines, sorting systems, and packaging machines where flexible sensing range and reliable detection are required. With adjustable sensing distance and support for both PNP and NPN outputs, it is suitable for diverse automation setups and ensures stable performance across different industrial applications.

Technical Specifications:

• Manufacturer: SICK
• Model / Part Number: WT24-2B210
• Product Type: Photoelectric Sensor (Diffuse Reflection)
• Sensing Range: 100 mm to 2500 mm
• Light Source: Visible red light
• Output Type: PNP / NPN selectable
• Output Function: Light/dark switching selectable
• Supply Voltage: 10–30 V DC
• Response Time: < 1 ms
• Adjustment: Potentiometer for sensing range
• Connection Type: Cable or connector (variant dependent)
• Housing Material: Industrial-grade plastic
• Protection Rating: IP67
• Operating Temperature: -25°C to +55°C
• Mounting: Standard industrial mounting

Common Replacements:

• SICK WT24-2B410
• SICK WT24-2B230
• SICK WT27-3P2430
