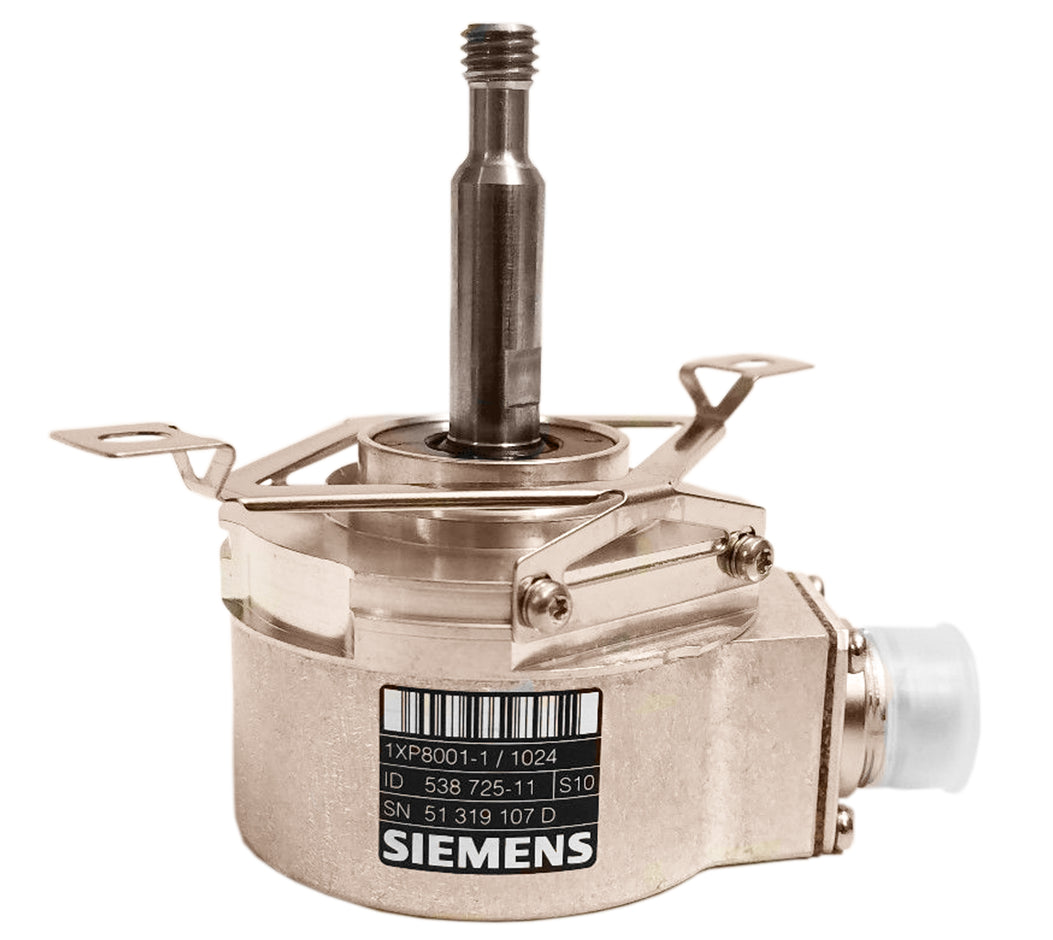

Siemens 1XP8001-1/1024 P/R Stainless Steel Rotary Pulse Encoder 1XP80011/1024

Description:

The Siemens 1XP8001-1/1024 rotary pulse encoder is used in motion control and feedback systems. Commonly installed in electric motors, CNC machines, conveyor systems, and industrial automation equipment. Maintenance teams, OEMs, and system integrators use this part for replacement, retrofit, and precise position and speed feedback.

Applications:

The Siemens 1XP8001-1/1024 pulse encoder is used in industrial automation to provide accurate position and speed feedback for motors and rotating machinery. It is widely deployed in CNC machines, servo drives, conveyor systems, and packaging equipment where precise motion control is critical. The encoder converts mechanical rotation into electrical signals, enabling closed-loop control in automation systems and improving accuracy, efficiency, and reliability of industrial processes.

Technical Specifications:

• Manufacturer: Siemens
• Model / Part Number: 1XP8001-1/1024
• Product Type: Incremental Rotary Pulse Encoder
• Resolution: 1024 pulses per revolution (PPR)
• Output Signal: HTL (push-pull / totem pole)
• Supply Voltage: 10–30 V DC
• Max Speed: Up to 9000 rpm
• Max Frequency: Up to 160 kHz
• Channels: Quadrature A & B outputs
• Shaft Type: Solid shaft (~9.5–9.7 mm diameter)
• Protection Rating: IP64–IP66
• Operating Temperature: -20°C to +100°C
• Connection: 12-pin circular connector
• Mounting: Flange mount with solid shaft design

Common Replacements:

• Siemens 1XP8001-2/1024 Encoder
• Siemens 1XP8001-1/2048 Encoder
• Siemens 1XP8012-20/1024 Encoder
