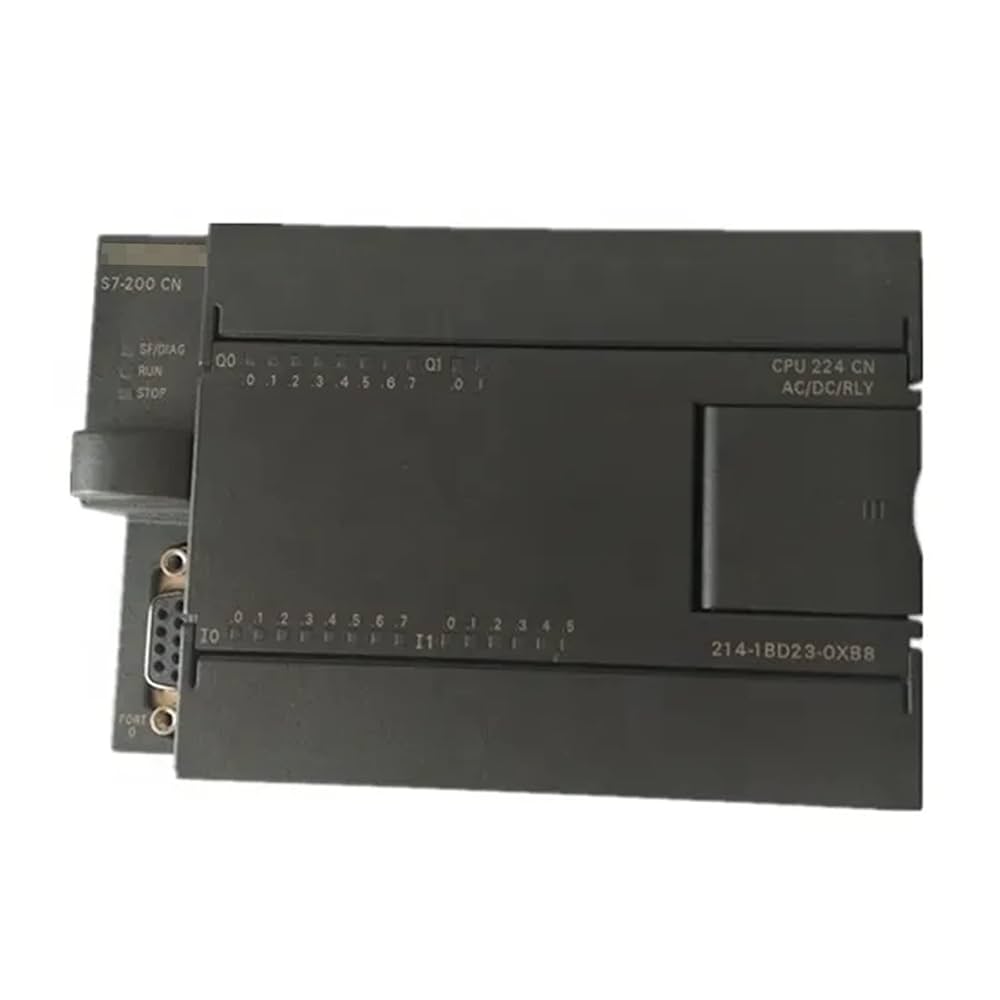

Siemens 224CPU 6ES7214-1BD23-0XB8

Description:

The Siemens 6ES7214-1BD23-0XB8 CPU 224 compact PLC is used in SIMATIC S7-200 automation systems. Commonly installed in small machine automation, packaging equipment, and standalone industrial control systems. Maintenance teams, OEMs, and system integrators use this part for replacement, retrofit, and compact PLC control solutions.

Applications:

The Siemens 6ES7214-1BD23-0XB8 is used in industrial automation systems to control small to medium-sized machines with integrated I/O capabilities. It is widely deployed in conveyor systems, assembly machines, HVAC systems, and packaging lines where reliable and cost-effective control is required. Its compact design and built-in inputs and outputs make it suitable for localized automation tasks in manufacturing environments.

Technical Specifications:

• Manufacturer: Siemens
• Model / Part Number: 6ES7214-1BD23-0XB8
• Product Type: CPU 224 Compact PLC (SIMATIC S7-200 CN)
• Power Supply: 85–264 V AC
• Digital Inputs: 14 × 24 V DC
• Digital Outputs: 10 × relay outputs
• Program Memory: 8–12 KB
• Data Memory: 8 KB
• Communication: Expandable via PROFIBUS DP
• Form Factor: Compact unit with integrated I/O
• Mounting: DIN rail
• Weight: Approx. 0.3–0.4 kg
• Product Status: Discontinued / legacy system

Common Replacements:

• Siemens 6ES7214-1AD23-0XB0
• Siemens 6ES7214-1BD22-0XB0
• Siemens 6ES7214-2BD23-0XB0
