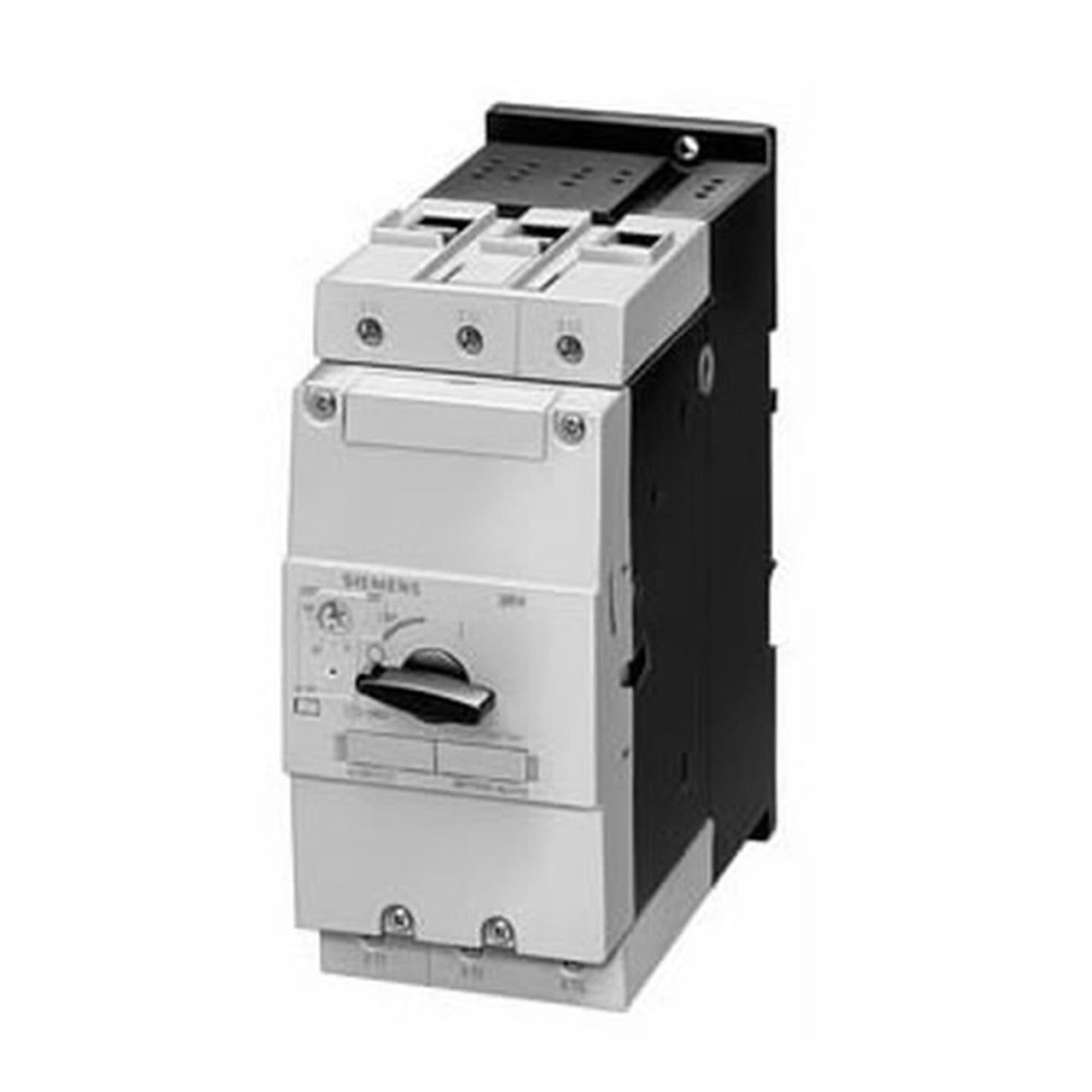

Siemens 3RV1041-4JA10 Motor Starter Protectors w/ Class 10 CIrcuit Breaker 3RV10414JA10

Description:

3RV10414JA10 DISCONTINUED BY MANUFACTURER MOTOR PROTECTOR 63 AMP 5-15 HP 3 POLE REPLACED BY 3RV2031-4JA10 The Siemens 3RV1041-4JA10 is a motor starter protector designed to provide robust protection and control for electric motors in industrial settings. Featuring a Class 10 circuit breaker, this device ensures reliable overload and short-circuit protection for motors up to 7.5 kW. The motor starter protector integrates seamlessly with Siemens' motor control systems, offering precise adjustment and protection tailored to the specific requirements of motor applications. It is designed for easy installation on DIN rails, making it an efficient solution for control panels and machinery requiring dependable motor protection.

Technical Specifications:

• Type: Motor Starter Protector with Circuit Breaker
• Model: 3RV1041-4JA10
• Power Rating: Up to 7.5 kW
• Rated Operational Voltage: 690V AC
• Number of Poles: 3 (Three-Phase)
• Adjustable Current Range: Typically 8.0 to 12.0 A (verify exact range from datasheet)
• Class: Class 10 (provides specific overload protection characteristics as per IEC standards)
• Rated Insulation Voltage: 690V AC
• Rated Breaking Capacity: High breaking capacity suitable for motor protection (verify specific breaking capacity from datasheet)
• Protection Features:
• Overload Protection: Adjustable settings to protect motors from overloads.
• Short Circuit Protection: Provides protection against short circuits.
• Mounting Type: DIN Rail (standard TS35)
• Degree of Protection: IP20 (suitable for indoor use; specific IP ratings may vary)
• Temperature Range: Typically -25°C to +60°C (verify exact operating range from datasheet)
• Dimensions (HxWxD): Specific dimensions should be verified from the datasheet for accurate fit.
• Standards Compliance: CE Marking and other relevant international standards
