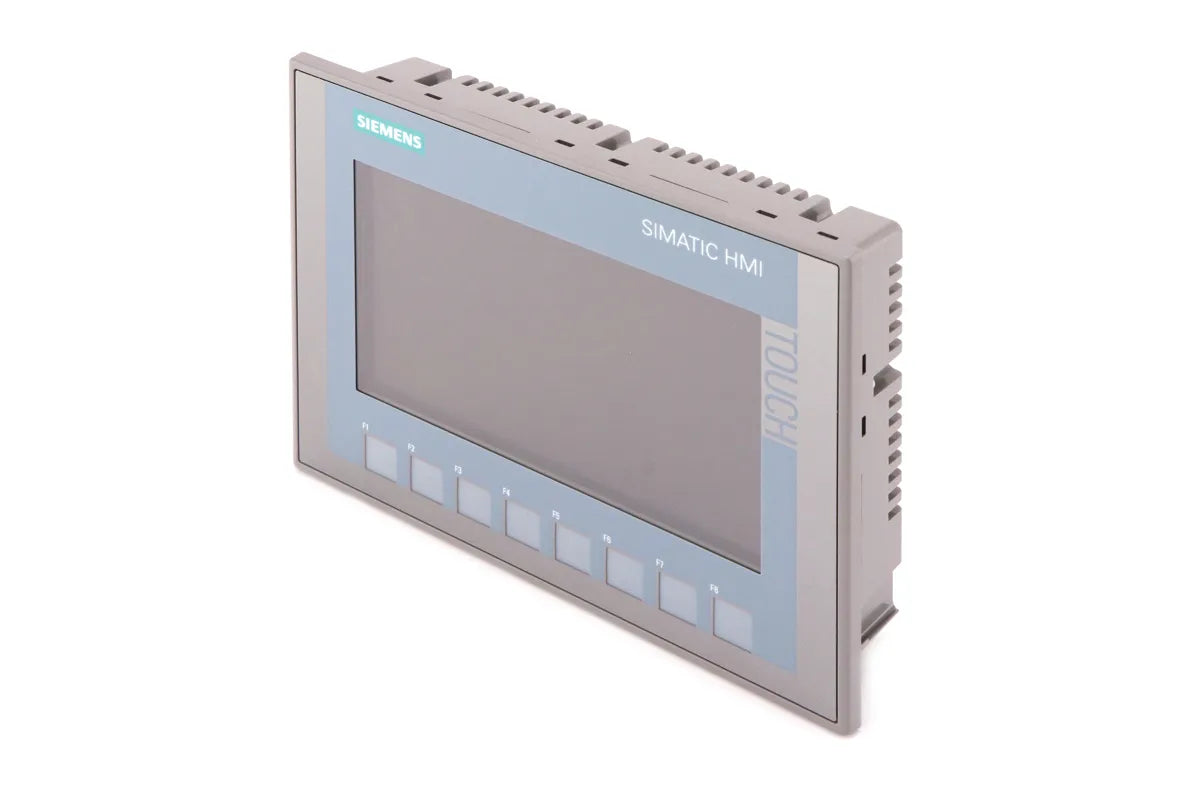

Siemens 6AV2123-2GB03-0AX0 DP KTP700 Basic 6AV2 123-2GB03-0AX0

Description:

The Siemens 6AV2123-2GB03-0AX0 SIMATIC KTP700 Basic HMI touch panel is used in industrial automation control and visualization systems. Commonly installed in machine control panels, packaging systems, and S7-1200 PLC-based automation applications.
Maintenance teams, OEMs, and system integrators use this part for replacement, retrofit, and operator interface implementation.

Applications:

The Siemens 6AV2123-2GB03-0AX0 is used in industrial automation systems to provide operator control and real-time monitoring of machines and processes. It is widely deployed in manufacturing lines, packaging systems, and OEM machinery where efficient and user-friendly HMI solutions are required. The touch panel enables seamless communication with PLC systems, improving operational efficiency and system diagnostics in industrial environments.

Technical Specifications:

• Manufacturer: Siemens
• Model / Part Number: 6AV2123-2GB03-0AX0
• Product Type: SIMATIC HMI KTP700 Basic Panel
• Display Size: 7-inch TFT widescreen
• Resolution: 800 × 480 pixels
• Colors: 65,536 colors
• Input Type: Touchscreen with function keys (key + touch operation)
• Interface: PROFINET / Industrial Ethernet
• Supply Voltage: 24 V DC
• Memory: Approx. 10 MB user memory
• Software Compatibility: WinCC Basic (TIA Portal) V13 / STEP 7 Basic V13
• Dimensions: Approx. 214 × 158 × 39 mm
• Weight: Approx. 0.78–0.97 kg
• Mounting: Panel mount
• Product Status: Active product

Common Replacements:

• Siemens 6AV2123-2GA03-0AX0
• Siemens 6AV2123-2JB03-0AX0
• Siemens 6AV2124-1GC01-0AX0
