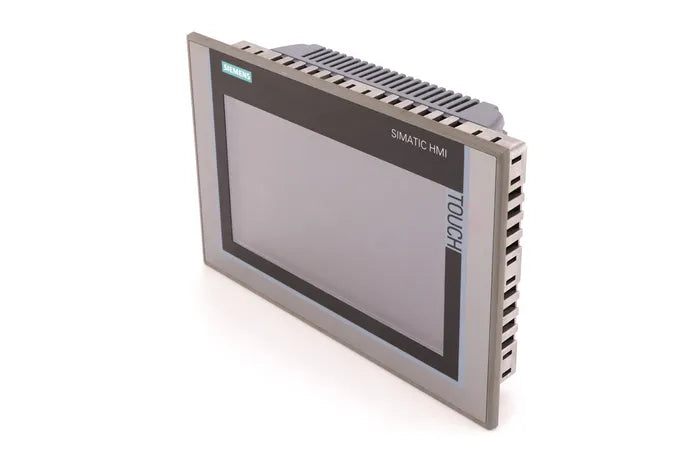

Siemens 6av2124-0jc01-0ax0 SIMATIC HMI tp900 Comfort 6av2124-0jc01-0ax0 6AV21240JC010AX0

Description:

6AV21240JC010AX0 OPERATOR INTERFACE 9 INCH WIDESCREEN TFT DISPLAY SIMATIC HMI TP900 COMFORT COMFORT PANEL TOUCH OPERATION INPUT PROFINET INTERFACE MPI/PROFIBUS DP INTERFACE 24 VDC The Siemens 6AV2124-0JC01-0AX0 is a robust and versatile HMI (Human-Machine Interface) panel designed for the S7-1200 PLC series. It features a 4-inch color TFT display with a resolution of 480 x 272 pixels, providing clear and intuitive visualization of process data and control elements. The panel includes a touch screen interface for efficient user interaction, allowing operators to easily monitor and control industrial processes. Its compact and durable design ensures reliable performance in demanding environments, making it suitable for a wide range of automation applications.

Technical Specifications:

• Product Type: HMI Operator Panel
• Catalog Number: 6AV2124-0JC01-0AX0
• Screen Size: 4 inches
• Display Type: Color TFT
• Resolution: 480 x 272 pixels
• Touch Screen: Resistive
• Communication Interfaces:
• MPI (Multi-Point Interface)
• PROFIBUS DP
• USB (for data transfer and configuration)
• Power Supply: 24V DC
• Operating Temperature Range: 0°C to 50°C
• Storage Temperature Range: -20°C to 70°C
• Relative Humidity: 5% to 95%, non-condensing
• Dimensions (W x H x D): Approximately 113 mm x 95 mm x 35 mm
• Mounting Type: Panel mount
