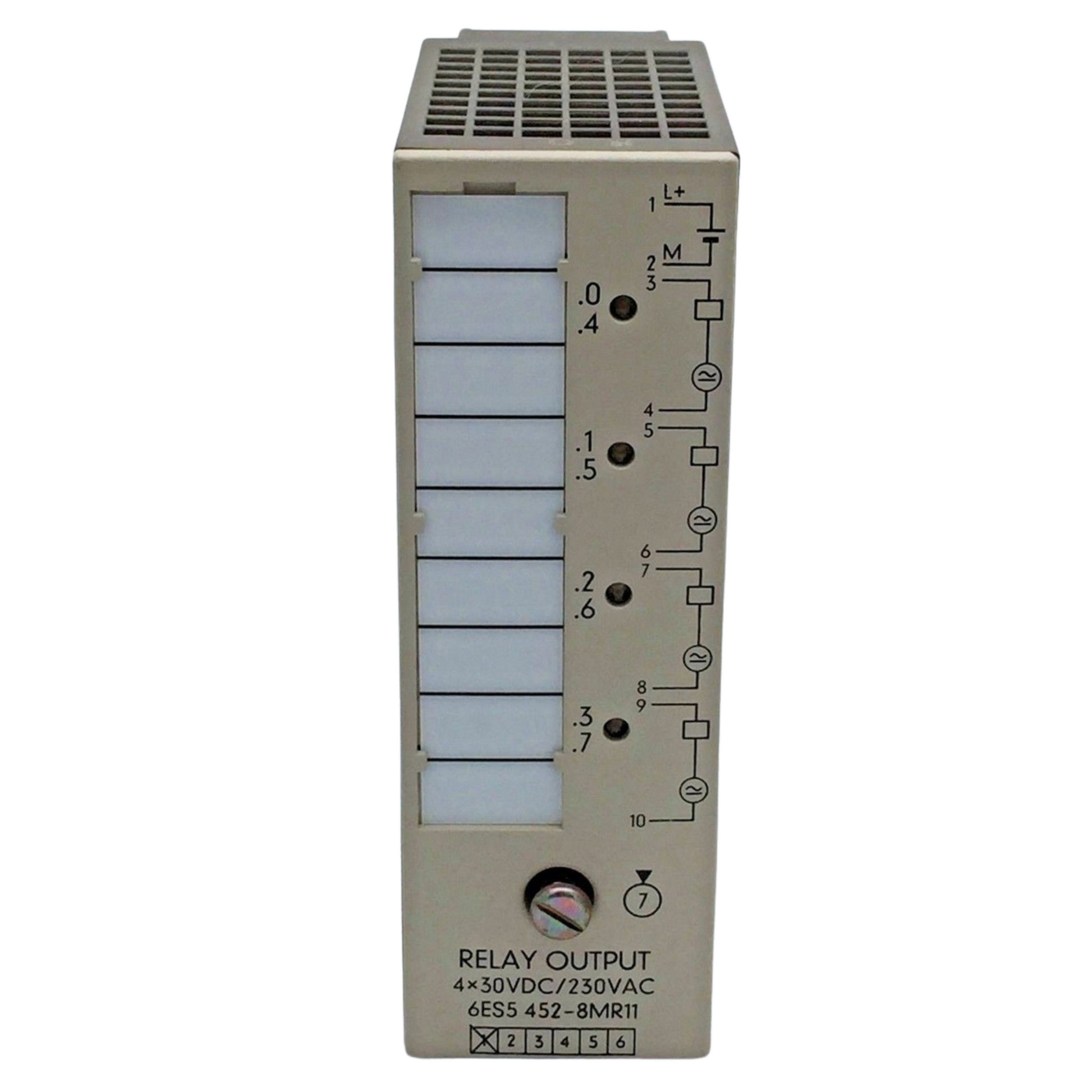

Siemens 6ES5 452-8MR11 Simatic S5 Output Module 6ES54528MR11

Description:

6ES54528MR11 DISCONTINUED BY MANUFACTURER 01/10/2022 DIGITAL OUTPUT MODULE SIMATIC S5 4 POINT 30 VDC 230 VAC ISOLATED FOR S5-90U/-95U/-100U The Siemens 6ES5 452-8MR11 is a high-quality output module designed for use in Siemens SIMATIC S5 programmable logic controller (PLC) systems. This module is part of the S5 series and is used to interface with external devices by providing digital output signals. It supports reliable control and monitoring functions by delivering electrical signals from the PLC to various output devices such as relays, actuators, or indicators. The 6ES5 452-8MR11 module is known for its robustness and precision, making it suitable for industrial automation and control applications.

Technical Specifications:

• Model Number: 6ES5 452-8MR11
• Type: Digital Output Module
• Compatibility: Siemens SIMATIC S5 PLC systems
• Number of Channels: 8
• Output Type: Relay outputs
• Output Voltage: 24V DC
• Output Current per Channel: 2A (max)
• Isolation: Electrical isolation between input and output
• Mounting Type: DIN rail mounting
• Connector Type: Screw terminals
• Dimensions (H x W x D): Approximately 100mm x 150mm x 120mm (subject to specific module version)
• Operating Temperature Range: 0°C to +60°C (32°F to 140°F)
• Storage Temperature Range: -25°C to +70°C (-13°F to 158°F)
• Certifications: CE, UL (check specific module for certification details)
