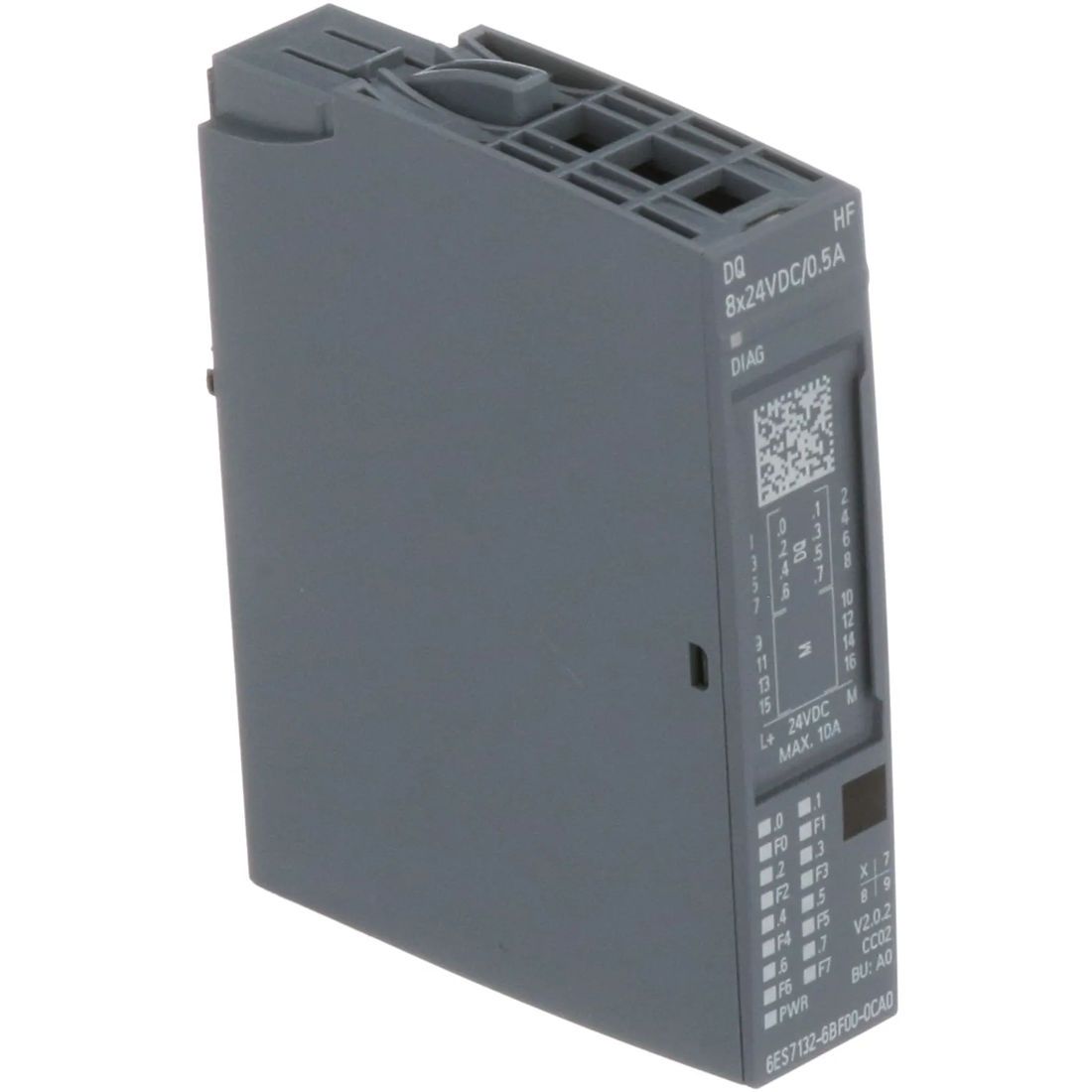

Siemens 6ES7132-6BF00-0CA0 Digital Output Module 6ES71326BF000CA0

Description:

The Siemens 6ES7132-6BF00-0CA0 digital output module is used in SIMATIC ET 200SP distributed PLC I/O systems. Commonly installed in industrial automation panels, machine control systems, and process control applications. Maintenance teams, OEMs, and system integrators use this part for replacement, retrofit, and digital output expansion.

Applications:

The Siemens 6ES7132-6BF00-0CA0 digital output module is used in industrial automation systems to control actuators such as relays, solenoids, contactors, and indicator devices. It is widely deployed in manufacturing lines, conveyor systems, packaging machines, and process plants where reliable switching of 24V DC loads is required. Integrated within ET 200SP distributed I/O systems, it enables efficient control of field devices and supports scalable, high-performance PLC architectures.

Technical Specifications:

• Manufacturer: Siemens
• Model / Part Number: 6ES7132-6BF00-0CA0
• Product Type: Digital Output Module (SIMATIC ET 200SP)
• Output Channels: 8 digital outputs
• Output Voltage: 24 V DC
• Output Current: 0.5 A per channel
• Output Type: PNP (source output)
• Feature Class: High Feature module
• Diagnostics: Short-circuit, wire break detection, channel fault LEDs
• Supply Voltage: 24 V DC
• Power Loss: Approx. 1 W
• Isolation: Tested up to 707 V DC
• Mounting: BaseUnit Type A0, DIN rail
• Dimensions: Approx. 58 × 15 × 73 mm
• Weight: Approx. 0.03–0.04 kg

Common Replacements:

• Siemens 6ES7132-6BF01-0CA0
• Siemens 6ES7132-6BH00-0CA0
• Siemens 6AG1132-6BF00-7CA0
