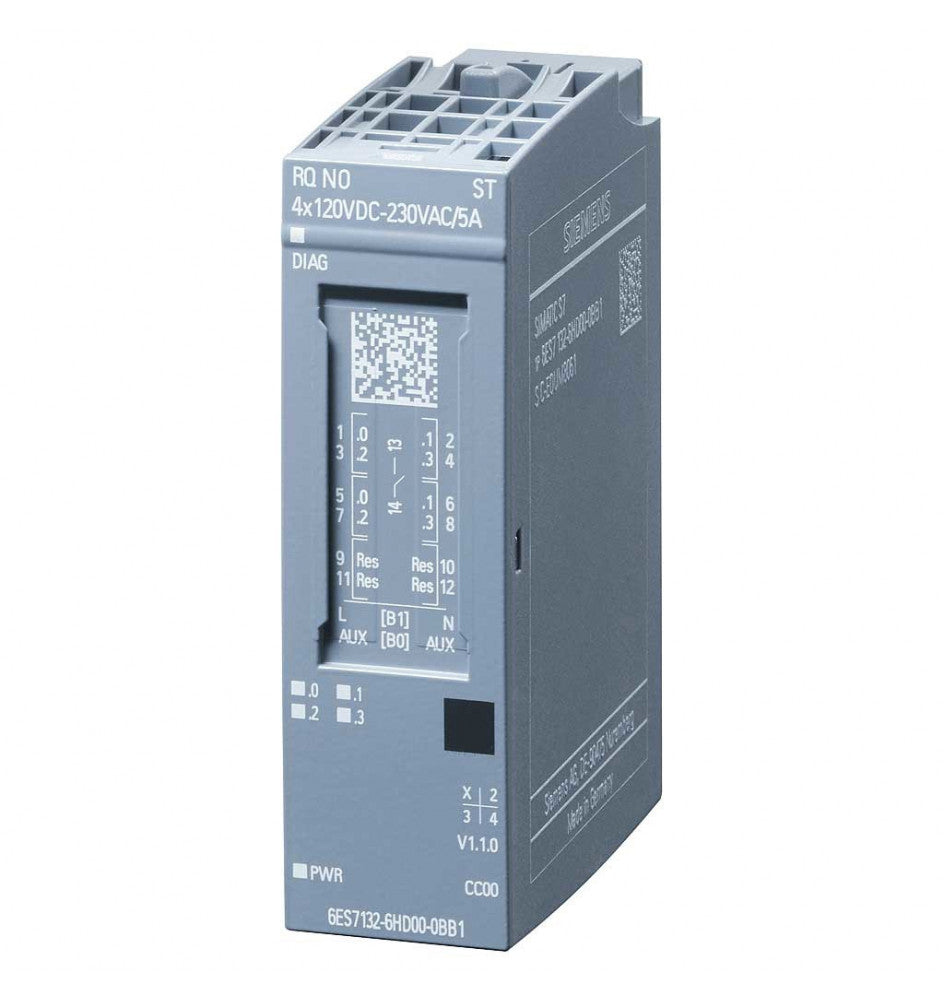

Siemens 6ES7132-6HD01-0BB1 Output Module 6ES71326HD010BB1

Description:

6ES71326HD010BB1 RELAY MODULE SIMATIC ET 200 SP 120 VDC / 230 VAC / 5AMP 4 NORMALLY OPEN CONTACTS ISOLATED CONTACTS FITS TO BU-TYPE B0 AND B1 COLOUR CODE CC40 SUBSTITUTE VALUE OUTPUT REPLACES: 6ES7132-6HD00-0BB1 The 6ES7 132-6HD01-0BB1 is a reliable digital input module from Siemens’ S7-1200 series, designed to provide robust and accurate digital signal processing in industrial automation systems. This module features 16 digital input channels, allowing it to interface with a variety of sensors and switches to monitor and control processes efficiently. Its compact design, combined with high performance and reliability, makes it an ideal component for expanding the capabilities of Siemens S7-1200 PLC systems.

Technical Specifications:

• Model: 6ES7 132-6HD01-0BB1
• Type: Digital Input Module
• Channels: 16
• Input Voltage Range: 24V DC
• Input Type: Sink (NPN) or Source (PNP) selectable
• Input Current: 7-12 mA (typical)
• Response Time: 1 ms (typical)
• Isolation: 500V between channels and internal circuitry
• Operating Temperature: 0 to 60°C
• Dimensions: 50 x 75 x 100 mm (approximate)
• Weight: 0.2 kg (approximate)
• Mounting: DIN rail mountable
• Protection Class: IP20
• Features: LED status indicators for each input, high-speed processing, reliable signal detection, compact design for space-constrained installations
