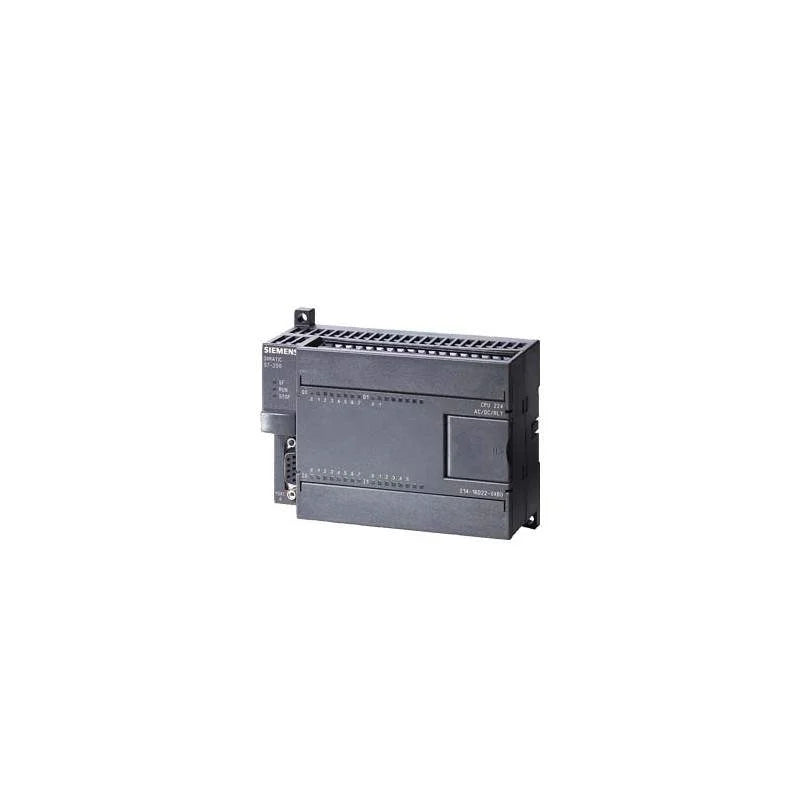

Siemens 6ES7 214-1BD23-0XB0 CPU Module Made In Germany 6ES72141BD230XB0

Description:

6ES72141BD230XB0 DISCONTINUED BY MANUFACTURER PLC MODULE SIMATIC S7-200 CPU 224 COMPACT UNIT AC POWER SUPPLY 14 DIGITAL INPUTS - DC 10 DIGITAL OUTPUTS - RELAY 8/12 KB PROGRAM 8 KB DATA PROFIBUS DP EXPANDABLE The 6ES72141BD230XB0 is a digital output module from Siemens’ S7-1200 series, designed for high-performance and reliable control in industrial automation applications. This module provides 16 digital outputs with transistor technology, enabling efficient and precise control of various devices such as actuators, relays, and solenoids. Its robust design ensures dependable operation in demanding environments, making it suitable for applications requiring high-speed and reliable digital signal output.

Technical Specifications:

• Model: 6ES72141BD230XB0
• Type: Digital Output Module
• Channels: 16
• Output Voltage Range: 24V DC
• Output Type: Transistor (NPN)
• Output Current: 0.5 A per channel
• Short-Circuit Protection: Yes
• Response Time: 1 ms (typical)
• Isolation: 500V between channels and internal circuitry
• Operating Temperature: 0 to 60°C
• Dimensions: 50 x 75 x 100 mm (approximate)
• Weight: 0.2 kg (approximate)
• Mounting: DIN rail mountable
• Protection Class: IP20
• Features: LED status indicators for each output, overload and short-circuit protection, high-speed switching, and reliable operation in industrial environments
