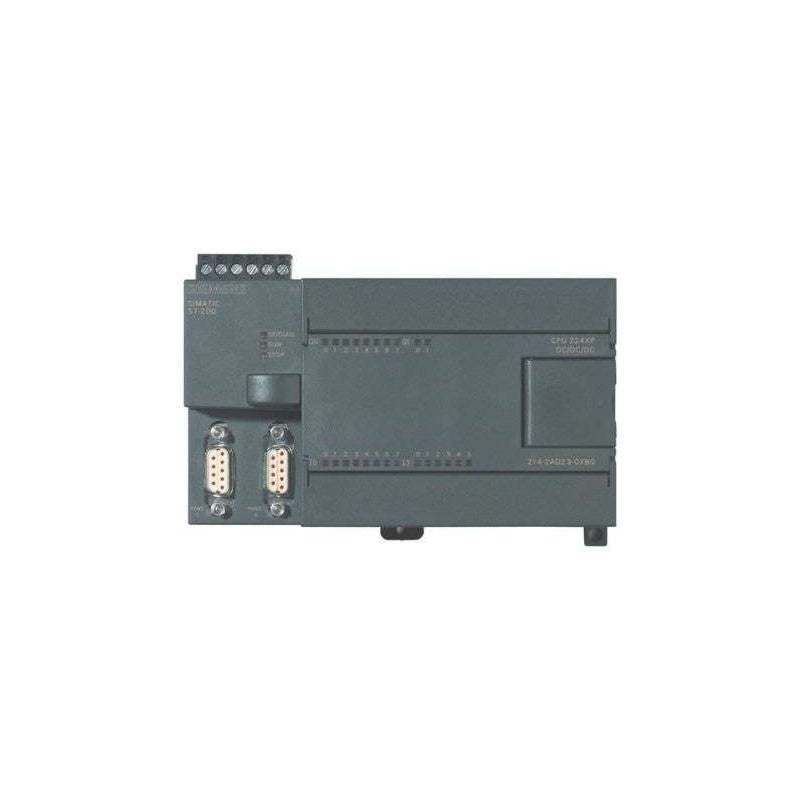

Siemens 6ES7 214-2BD23-0XB0 Compact PLC 6ES7214-2BD23-0XB0

Description:

The Siemens 6ES7214-2BD23-0XB0 CPU 224XP compact PLC is used in SIMATIC S7-200 automation systems. Commonly installed in small machine automation, packaging equipment, and standalone industrial control applications. Maintenance teams, OEMs, and system integrators use this part for replacement, retrofit, and compact PLC control solutions.

Applications:

The Siemens 6ES7214-2BD23-0XB0 is used in industrial automation systems to control small to medium-sized machines with integrated I/O. It is widely deployed in conveyor systems, assembly machines, HVAC systems, and packaging lines where reliable and cost-effective control is required. Its compact design and built-in digital inputs and outputs make it suitable for localized automation tasks in manufacturing environments.

Technical Specifications:

• Manufacturer: Siemens
• Model / Part Number: 6ES7214-2BD23-0XB0
• Product Type: CPU 224XP Compact PLC (SIMATIC S7-200)
• Power Supply: 120–230 V AC
• Digital Inputs: 14 × 24 V DC
• Digital Outputs: 10 × relay outputs
• Analog Inputs: 2 channels
• Analog Outputs: 1 channel
• Program Memory: 12 / 16 KB
• Data Memory: 10 KB
• Communication Interfaces: 2 × PPI / RS-485 ports
• Dimensions: Approx. 140 × 80 × 62 mm
• Weight: Approx. 0.44 kg
• Mounting: DIN rail
• Product Status: Discontinued / legacy system

Common Replacements:

• Siemens 6ES7214-2BD23-0XB0
• Siemens 6ES7214-2AD23-0XB0
• Siemens 6ES7214-1BD23-0XB0
