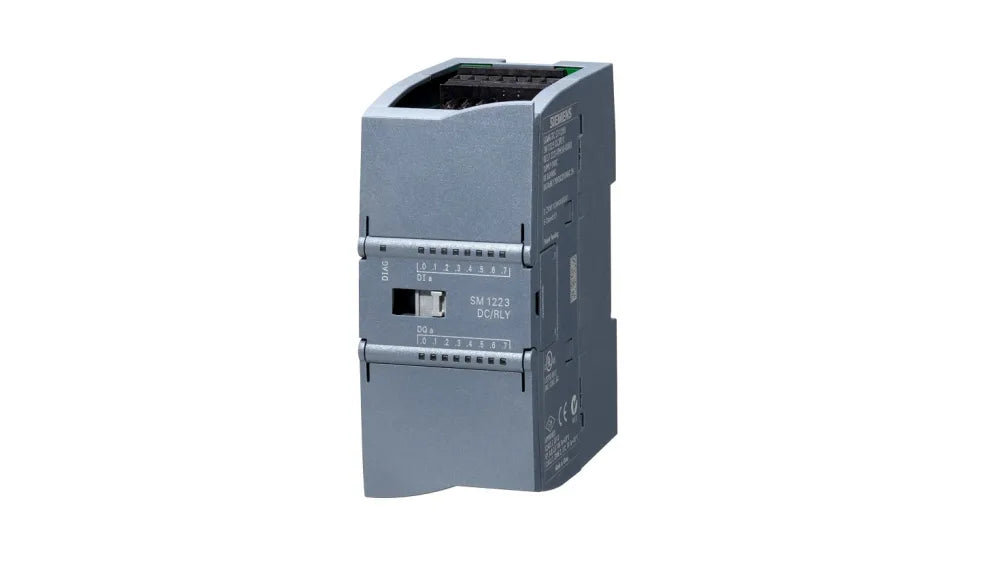

Siemens 6ES7 223-1PH32-0XB0 6ES7223-1PH32-0XB0 PLC Module 6ES72231PH320XB0

Description:

6ES72231PH320XB0 DIGITAL I/O MODULE SM 1223 8 DI/8 DO 24 VDC 2 AMP RELAY The Siemens 6ES7223-1PH32-0XB0 is a high-performance digital input module designed for use with the S7-1200 PLC series. This module provides 16 digital input channels, each capable of handling 24V DC signals, making it suitable for various industrial automation applications. It features advanced diagnostics with LED indicators for real-time status monitoring, which simplifies troubleshooting and ensures reliable operation. The module's compact design allows for easy integration into control panels, enhancing the S7-1200 PLC's capability to handle a wide range of digital input tasks efficiently.

Technical Specifications:

• Product Type: Digital Input Module
• Series: S7-1200
• Catalog Number: 6ES7223-1PH32-0XB0
• Number of Inputs: 16
• Input Voltage: 24V DC
• Input Current: 5 mA per channel
• Response Time: 1 ms (typical)
• Isolation: 500V (channel-to-channel and channel-to-bus)
• Diagnostic Indicators: LEDs for input status
• Mounting Type: DIN rail
• Dimensions (W x H x D): Approximately 40 mm x 125 mm x 120 mm
• Operating Temperature Range: 0°C to 60°C
• Storage Temperature Range: -40°C to 85°C
• Relative Humidity: 5% to 95%, non-condensing
