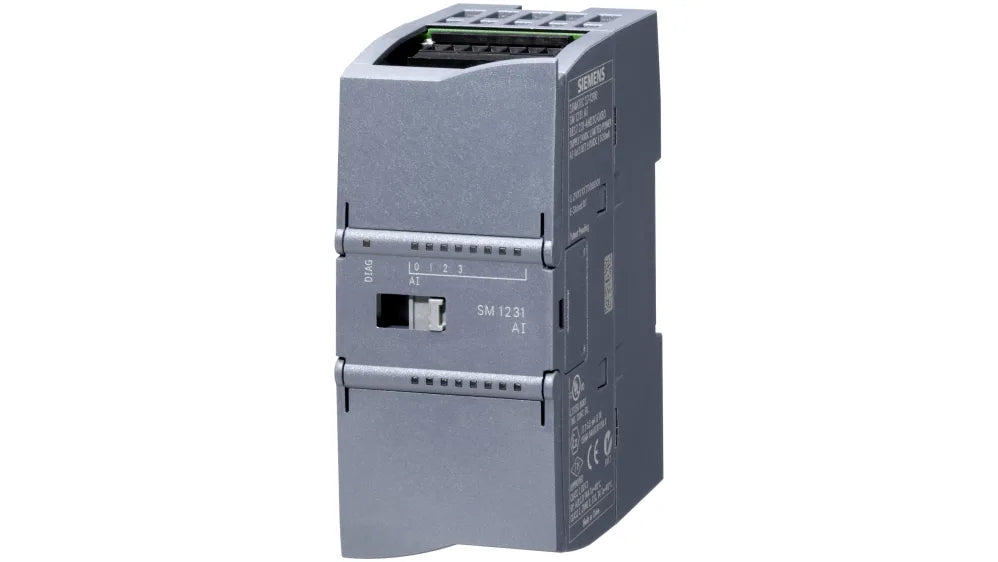

Siemens 6ES7 231-4HD32-0XB0 Analog Input Module 6ES72314HD320XB0

Description:

The Siemens 6ES7 231-4HD32-0XB0 analog input module is used in SIMATIC S7-1200 automation systems. Commonly installed in process control systems, manufacturing lines, and industrial monitoring applications. Maintenance teams, OEMs, and system integrators use this part for system expansion, replacement, and precise analog signal acquisition.

Applications:

The Siemens 6ES7 231-4HD32-0XB0 is designed to acquire analog signals such as voltage and current from field sensors in industrial environments. It is widely used in process automation, machine control systems, and manufacturing plants where accurate measurement of parameters like temperature, pressure, and flow is essential for system performance, monitoring, and control reliability.

Technical Specifications:

• Manufacturer Part Number (MPN): 6ES7 231-4HD32-0XB0
• Product Type: Analog Input Module
• Series: SIMATIC S7-1200 (SM 1231)
• Number of Inputs: 4 analog inputs
• Signal Type: Voltage (±10 V), Current (0–20 mA / 4–20 mA)
• Resolution: 14-bit / 16-bit (depending on signal type)
• Accuracy: ±0.1%
• Supply Voltage: 24 V DC
• Communication Interface: S7-1200 backplane bus
• Mounting Type: DIN rail
• Diagnostic Features: Channel diagnostics and status indicators
• Operating Temperature: -20°C to +60°C
• Protection Class: IP20

Common Replacements:

• Siemens 6ES7231-4HF32-0XB0
• Siemens 6ES7231-4HD30-0XB0
• Siemens 6ES7231-5PD32-0XB0
