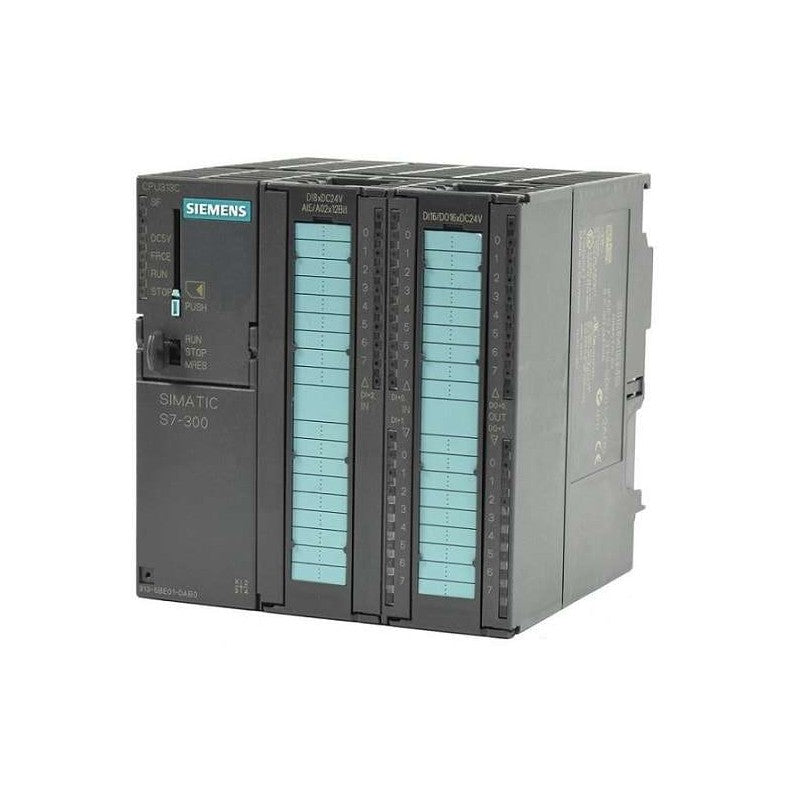

Siemens 6ES7 313-5BE01-0AB0 6ES7313-5BE01-0AB0 Controller 6ES73135BE010AB0

Description:

6ES73135BE010AB0 DISCONTINUED BY MANUFACTURER DISCONTINUED SINCE: 01.10.2013 SIMATIC S7-300 CPU 313C COMPACT CPU WITH MPI 24 DI/16 DO 4AI/2 AO 1 PT100 3 FAST COUNTERS (30 KHZ) INTEGRATED 24V DC POWER SUPPLY 32 KB WORKING MEMORY The 6ES7 313-5BE01-0AB0 is a Siemens S7-300 series CPU module designed for versatile and high-performance control in industrial automation systems. This compact and powerful CPU features integrated communication capabilities and extensive I/O options, providing reliable processing and control for a range of automation tasks. Its advanced functions and flexibility make it suitable for complex and demanding applications.

Technical Specifications:

• Model: 6ES7 313-5BE01-0AB0 (S7-300 CPU Module)
• Type: CPU 313
• Processor Type: Standard CPU with integrated I/O
• Program Memory: 128 KB
• Data Memory: 64 KB
• Communication Interfaces: 1 MPI/DP interface
• Number of I/O Slots: 8
• Operating Temperature Range: 0°C to +60°C
• Dimensions: 125 x 120 x 130 mm
• Mounting: DIN rail
• Certifications: CE, UL
