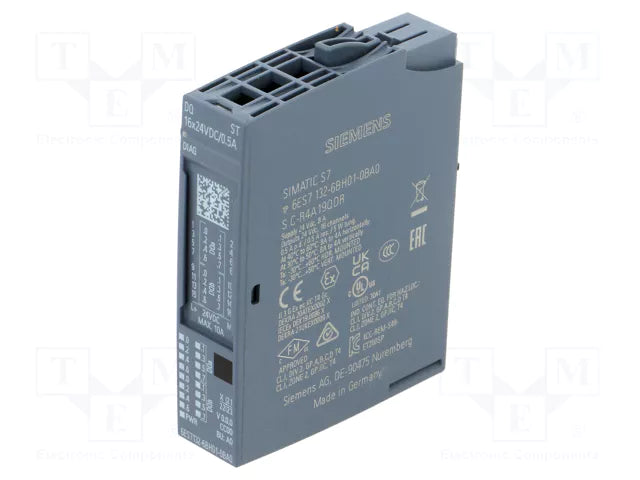

Siemens 6ES7132-6BH01-0BA0 Digital Output Module 6ES71326BH010BA0

Description:

The Siemens 6ES7132-6BH01-0BA0 digital output module is used in SIMATIC ET 200SP distributed PLC I/O systems. Commonly installed in industrial automation panels, machine control systems, and process control applications. Maintenance teams, OEMs, and system integrators use this part for replacement, retrofit, and digital output expansion.

Applications:

The Siemens 6ES7132-6BH01-0BA0 is used in industrial automation systems to control actuators such as relays, solenoids, and indicator devices. It is widely deployed in manufacturing lines, packaging machines, and material handling systems where precise and reliable switching of outputs is required. The module ensures efficient signal transmission from PLC to field devices in distributed I/O architectures.

Technical Specifications:

• Manufacturer: Siemens
• Model / Part Number: 6ES7132-6BH01-0BA0
• Product Type: Digital Output Module (SIMATIC ET 200SP)
• Output Channels: 16 digital outputs
• Output Voltage: 24 V DC
• Output Current: 0.5 A per channel
• Output Type: PNP (source output)
• Switching Type: P-switching (PNP)
• Response Time: 50 µs (OFF→ON), 100 µs (ON→OFF)
• Supply Voltage Range: 19.2–28.8 V DC
• Diagnostics: Short circuit, wire break, and supply voltage monitoring
• Power Dissipation: Approx. 1 W
• Dimensions: Approx. 73 × 15 × 58 mm
• Weight: Approx. 0.036–0.04 kg
• Mounting: BaseUnit Type A0, DIN rail
• Protection Rating: IP20
• Product Status: Active product

Common Replacements:

• Siemens 6ES7132-6BH00-0BA0
• Siemens 6ES7132-6BF01-0CA0
• Siemens 6AG1132-6BH01-7BA0
