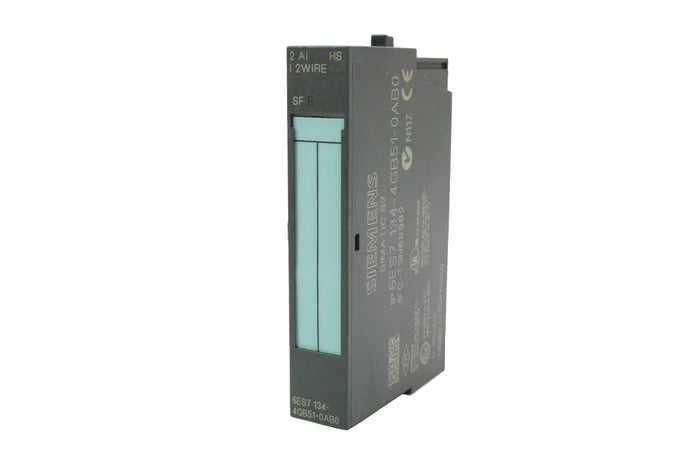

Siemens 6ES7134-4GB51-0AB0 Module 6ES71344GB510AB0

Description:

6ES71344GB510AB0 DISCONTINUED BY MANUFACTURER ELECTRONICS MODULE ET200S 2 OUTPUTS (ENCODER SUPPLY) 2 ANALOG INPUTS 1 MS CYCLE TIME PER MODULE 4-20 MA 14 BIT 15 MM WIDTH FOR 2-WIRE TRANSDUCER WITH SF LED (GROUP FAULT) 24 VDC SUPPLY SIMATIC S7 The Siemens 6ES7134-4GB51-0AB0 is an advanced analog input module designed for the S7-1200 PLC series, providing precise and reliable analog signal measurement. Featuring 4 analog inputs, this module supports multiple signal types including voltage (0-10V) and current (0/4-20mA), and offers a resolution of 12 bits for accurate data acquisition. It is equipped with integrated diagnostics to ensure signal integrity and ease of maintenance. The module’s compact design and seamless integration with the S7-1200 system make it ideal for applications requiring high-accuracy analog data processing in industrial environments.

Technical Specifications:

• Product Type: Analog Input Module
• Series: S7-1200
• Catalog Number: 6ES7134-4GB51-0AB0
• Number of Inputs: 4
• Input Types:
• Voltage: 0-10V
• Current: 0/4-20mA
• Input Resolution: 12 bits
• Accuracy: ±0.2% of full scale
• Sampling Rate: 1 ms (per channel)
• Isolation: 500V (channel-to-channel and channel-to-bus)
• Diagnostic Indicators: LEDs for input status
• Mounting Type: DIN rail
• Dimensions (W x H x D): Approximately 40 mm x 125 mm x 120 mm
• Operating Temperature Range: 0°C to 60°C
• Storage Temperature Range: -40°C to 85°C
• Relative Humidity: 5% to 95%, non-condensing
