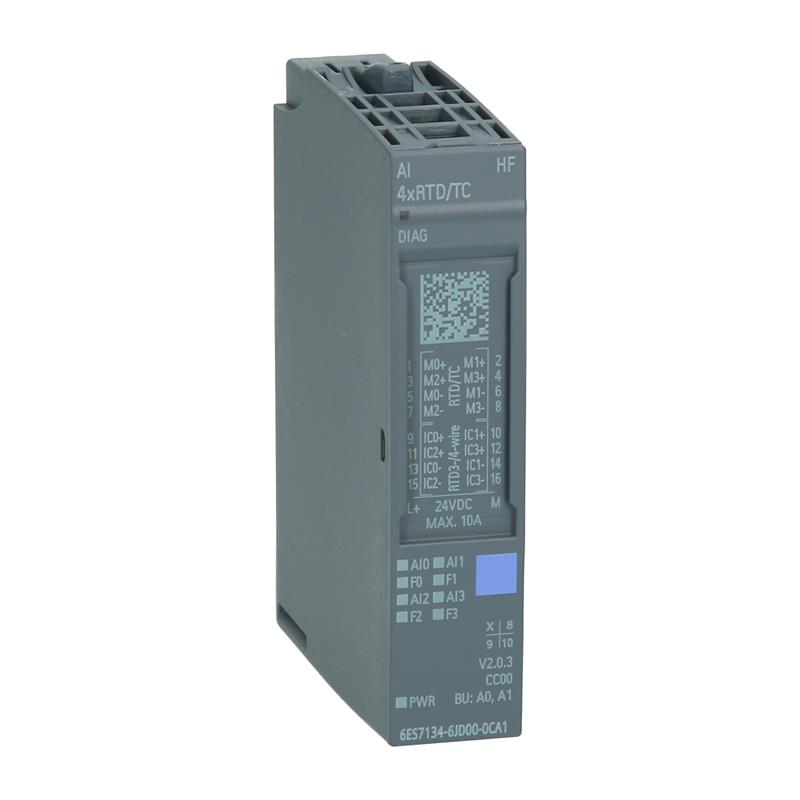

Siemens 6ES7134-6JD00-0CA1 SIMATIC S7 6ES71346JD00CA1

Description:

6ES71346JD000CA1 ANALOG INPUT MODULE SIMATIC ET 200SP 35 MA 24 VDC 4 INPUT FOR TYPE A0/A01 BASE UNIT 16 BIT RESOLUTION 0.75 WATT POWER LOSS -30 TO 60 DEGREE C The Siemens 6ES7134-6JD00-0CA1 is a high-performance analog output module designed for the S7-1200 PLC series. This module features 4 analog output channels, providing precise control over analog signals with a resolution of 12 bits. It supports both voltage and current output signals, allowing for flexible integration into a wide range of automation applications. The module is engineered for high reliability and accuracy, with each channel capable of driving 0/4-20 mA or 0-10 V signals. It also includes diagnostic LEDs for monitoring output status and quick troubleshooting. Its compact design facilitates easy installation and integration into the S7-1200 system, enhancing overall control and monitoring capabilities.

Technical Specifications:

• Product Type: Analog Output Module
• Series: S7-1200
• Catalog Number: 6ES7134-6JD00-0CA1
• Number of Outputs: 4
• Output Types:
• Voltage: 0-10V
• Current: 0/4-20mA
• Output Resolution: 12 bits
• Output Range:
• Voltage: 0-10V
• Current: 0/4-20mA
• Accuracy: ±0.2% of full scale
• Sampling Rate: 1 ms (per channel)
• Isolation: 500V (channel-to-channel and channel-to-bus)
• Diagnostic Indicators: LEDs for output status
• Mounting Type: DIN rail
• Dimensions (W x H x D): Approximately 40 mm x 125 mm x 120 mm
• Operating Temperature Range: 0°C to 60°C
• Storage Temperature Range: -40°C to 85°C
• Relative Humidity: 5% to 95%, non-condensing
