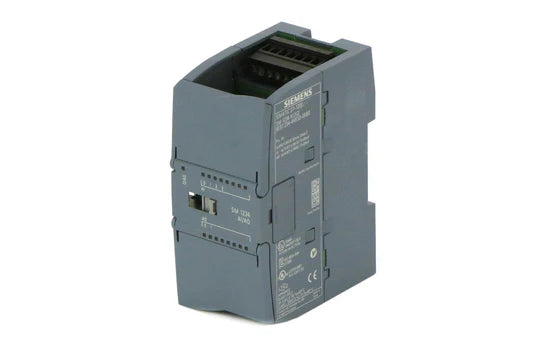

Siemens 6ES7234-4HE32-0XB0 Analog Input/Output Module 6ES72344HE320XB0

Description:

The Siemens 6ES7234-4HE32-0XB0 is an analog input/output expansion module designed for the SIMATIC S7-1200 PLC platform, providing both analog signal acquisition and output control in a single compact unit. Installed in industrial control panels and automation systems where precise monitoring and control of analog signals is required. Maintenance teams and system integrators use this module for system expansion, retrofit, and upgrades to interface sensors and actuators with PLC logic.

Applications:

The Siemens 6ES7234-4HE32-0XB0 module is used in industrial automation, process control systems, HVAC systems, water/wastewater treatment, and manufacturing equipment where analog signals such as temperature, pressure, flow, and speed need to be monitored and controlled. Siemens analog modules enable accurate signal conversion and control in packaging machines, robotics, and general automation environments.

Technical Specifications:

• Manufacturer: Siemens
• Model / Part Number: 6ES7234-4HE32-0XB0
• Product Type: Analog Input/Output Module (SM 1234)
• PLC Platform: SIMATIC S7-1200
• Analog Inputs: 4 channels
• Analog Outputs: 2 channels
• Input Resolution: Up to 14-bit (voltage), 13-bit (current)
• Output Resolution: Up to 13-bit
• Input Signal Types: ±10 V, 0–20 mA, 4–20 mA
• Output Signal Types: 0–10 V, 0–20 mA
• Supply Voltage: 24 V DC
• Conversion Time: ~2.5 ms per channel
• Mounting: DIN rail
• Dimensions: ~45 × 100 × 75 mm
• Operating Temperature: −20°C to +60°C
• Protection Rating: IP20
• Communication: Backplane interface with S7-1200 CPU
• Application: Analog signal interfacing and control

Common Replacements:

• Siemens 6ES7234-4HF32-0XB0 (similar SM 1234 variant)
• Siemens SM 1231 Analog Input Module (input-only alternative)
• Siemens SM 1232 Analog Output Module (output-only alternative)
