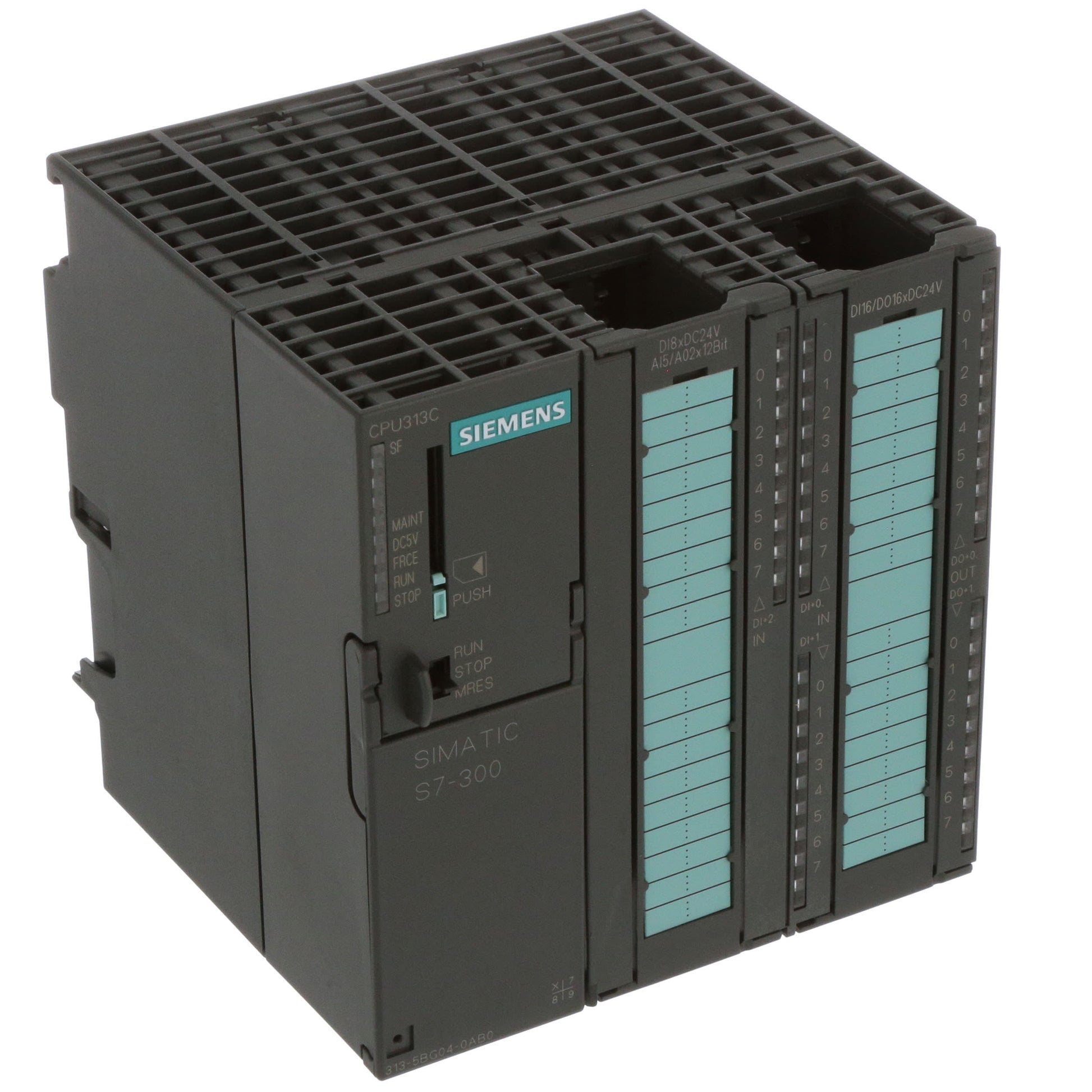

Siemens 6ES7313-5BG04-0AB0 6ES7 313-5BG04-0AB0

Description:

6ES73135BG040AB0 PLC CPU SIMATIC S7-300 313C 24 DIGITAL INPUTS 16 DIGITAL OUTPUTS 4 ANALOG/ CURRENT INPUTS 24 VDC 128 KB WORK MEMORY The Siemens 6ES7313-5BG04-0AB0 is a high-performance CPU module designed for use in Siemens S7-300 PLC systems. This CPU module is equipped with advanced processing capabilities and a wide range of built-in functions to handle complex automation tasks efficiently. It features a robust design that supports a large number of I/O modules and communication options, making it suitable for diverse industrial applications. The 6ES7313-5BG04-0AB0 provides reliable performance, high-speed processing, and comprehensive diagnostic functions, ensuring optimal control and monitoring of industrial processes.

Technical Specifications:

• Part Number: 6ES7313-5BG04-0AB0
• Type: CPU Module
• Series: S7-300
• Processing Unit: 32-bit processor
• Clock Speed: 25 MHz
• Memory:
• Program Memory: 512 KB
• Data Memory: 256 KB
• I/O Handling Capacity: Up to 256 I/O modules
• Communication Interfaces:
• 1 x PROFIBUS DP
• 1 x PROFINET (optional)
• Diagnostics: Integrated diagnostic functions for monitoring and troubleshooting
• Operating Temperature Range: 0 to 60°C
• Degree of Protection: IP20
• Dimensions (W x H x D): 40 x 150 x 120 mm
• Weight: Approximately 220 g
